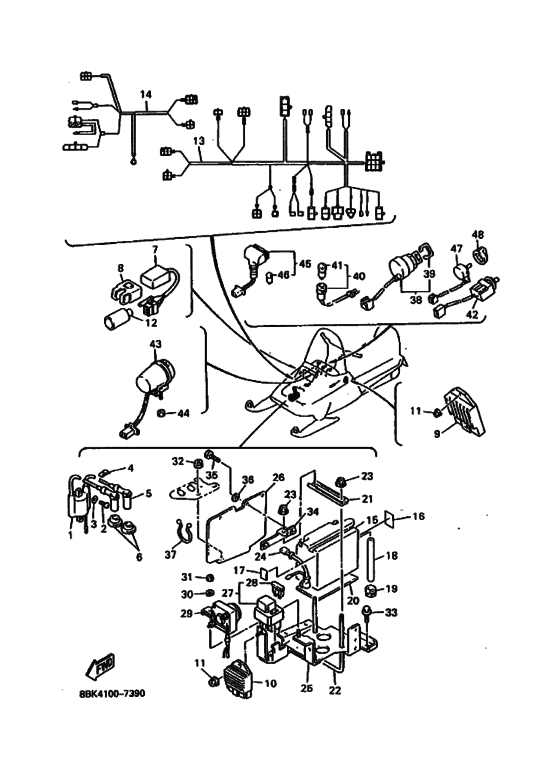

Electrical 1 Diagram Yamaha VT480 Venture 480
- Model code
- 8BK4
- Engine Capacity
- 485
- Year
- 1997
- Sales region
- Europe (010)
- Colour
- Purplish Blue Metallic 7 (PBM7; 0549)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88T-82310-00-00 Ignition Coil Assy |
88T-82310-00-00 |
from US $82.36 |
||
| replacement | |||||
|
1
|
1
8AB-82310-09-00 Ignition Coil Assy |
8AB-82310-09-00 |
from US $82.36 |
||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
5
|
5
8K1-82370-20-00 Plug Cap Assembly |
8K1-82370-20-00 |
from US $31.16 |
||
| replacement | |||||
|
5
|
5
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $32.04 |
||
|
6
|
6
8V0-82372-00-00 Seal, Plug Cap |
8V0-82372-00-00 |
from US $3.83 |
||
|
7
|
7
8BK-85540-00-00
C.d.i. Unit Assembly
|
8BK-85540-00-00 |
— | ||
| replacement | |||||
|
7
|
7
8BK-85540-01-00
C.d.i. Unit Assembly
|
8BK-85540-01-00 |
— | ||
|
8
|
8
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
9
|
9
8AB-81910-00-00 Voltage Regulator Assy |
8AB-81910-00-00 |
US $120.44 |
||
|
10
|
10
89A-81960-00-00 Rectifier & Regulator Assy |
89A-81960-00-00 |
from US $111.98 |
||
|
11
|
11
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
12
|
12
8Y0-82599-00-00 Cover, Connecter |
8Y0-82599-00-00 |
from US $1.70 |
||
|
13
|
13
8BK-82590-10-00
Wire Harness Assy
|
8BK-82590-10-00 |
— | ||
|
14
|
14
8BK-82580-10-00 Wire Harness Assy 2 |
8BK-82580-10-00 |
US $151.07 |
||
|
15
|
15
447-82110-19-00
Battery (Yb14L-A2)
|
447-82110-19-00 |
— | ||
| replacements | |||||
|
15
|
15
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
|
YB1-4LA20-00-00 |
— | ||
|
15
|
15
CB1-4LA20-00-00
element
|
CB1-4LA20-00-00 |
— | ||
|
16
|
16
447-82141-J0-00
Label, Battery
UR FOR USA |
447-82141-J0-00 |
— | ||
| replacements | |||||
|
16
|
16
40A-82141-G0-00
Label, Battery
UR FOR USA |
40A-82141-G0-00 |
— | ||
|
16
|
16
999-99999-99-00
Not Available
UR FOR USA |
999-99999-99-00 |
— | ||
|
16
|
16
118-82141-09-00
Label, Battery
UR FOR USA |
118-82141-09-00 |
— | ||
|
17
|
17
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.91 |
||
|
18
|
18
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.39 |
||
| replacement | |||||
|
19
|
19
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
20
|
20
82L-82122-00-00 Seat, Battery |
82L-82122-00-00 |
US $8.66 |
||
|
21
|
21
8J4-82136-00-00
Plate, Battery Fitting
|
8J4-82136-00-00 |
— | ||
|
22
|
22
8J4-82133-00-00 Screw, Fitting |
8J4-82133-00-00 |
US $10.53 |
||
|
23
|
23
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
24
|
24
84N-82115-00-00
Wire, Plus Lead
|
84N-82115-00-00 |
— | ||
|
25
|
25
89H-2199G-00-00 Bracket, Battery |
89H-2199G-00-00 |
from US $67.98 |
||
|
26
|
26
8V0-2199H-00-00 Shield, Heat |
8V0-2199H-00-00 |
US $33.37 |
||
|
27
|
27
8BE-82150-00-00 Fuse Holder Assy |
8BE-82150-00-00 |
from US $18.73 |
||
|
28
|
28
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.66 |
||
|
29
|
29
8J9-81940-10-00 Starter Relay Assy |
8J9-81940-10-00 |
US $149 |
||
|
30
|
30
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
31
|
31
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
32
|
32
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
32
|
32
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
33
|
33
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
34
|
34
8V0-82128-00-00 Bracket, Battery |
8V0-82128-00-00 |
US $10.93 |
||
|
35
|
35
97007-05010-00 Bolt |
97007-05010-00 |
from US $1.70 |
||
| replacement | |||||
|
35
|
35
97027-05010-00 Bolt, Hexagon |
97027-05010-00 |
from US $1.70 |
||
|
36
|
36
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
37
|
37
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
38
|
38
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
38
|
38
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
39
|
39
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
40
|
40
8V0-84301-00-00
Pilot Light Assembly 1
|
8V0-84301-00-00 |
— | ||
|
41
|
41
8V0-85353-00-00
Bulb (12V5W)
12V5W |
8V0-85353-00-00 |
— | ||
|
42
|
42
8BE-82917-00-00 Switch |
8BE-82917-00-00 |
from US $77.65 |
||
| replacement | |||||
|
42
|
42
8JD-82917-00-00 Switch |
8JD-82917-00-00 |
from US $77.65 |
||
|
43
|
43
8CL-83383-00-00
Buzzer
|
8CL-83383-00-00 |
— | ||
|
44
|
44
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
44
|
44
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
45
|
45
88T-83530-01-00 Pilot Light Assy |
88T-83530-01-00 |
US $30.15 |
||
|
46
|
46
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
46
|
46
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
47
|
47
8CR-87283-00-00
Resistor, Variable
|
8CR-87283-00-00 |
— | ||
|
48
|
48
8AB-87284-00-00 Knob, Variable Resistor |
8AB-87284-00-00 |
from US $8.23 |
||
