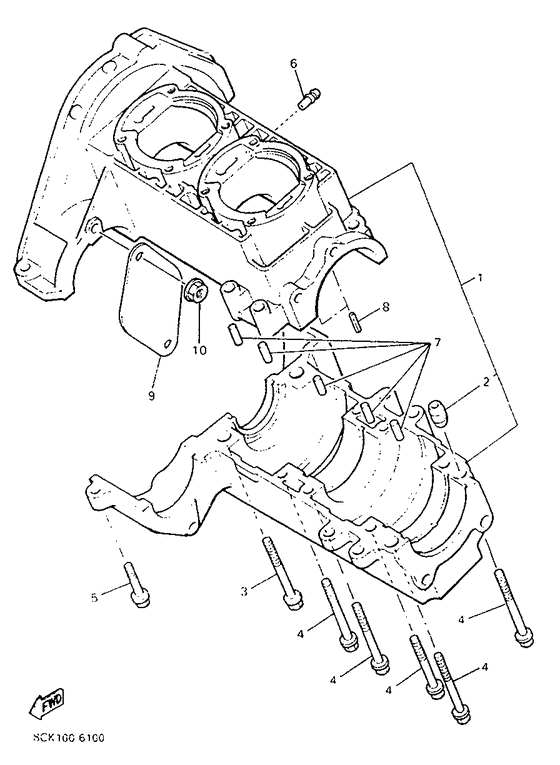

Crankcase Diagram Yamaha VT480 Venture 480 TF
- Model code
- 8CK2
- Engine Capacity
- 485
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Purplish Blue Metallic 7 (PBM7; 0549)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88T-15100-00-00 Crankcase Assy |
88T-15100-00-00 |
US $1,006.20 |
||
| replacement | |||||
|
01
|
01
88T-15100-01-00 Crankcase Assy |
88T-15100-01-00 |
US $1,006.20 |
||
|
02
|
02
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
02
|
02
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
03
|
03
90105-08466-00
Bolt, Flange
|
90105-08466-00 |
— | ||
|
04
|
04
95817-08065-00 Bolt, Flange |
95817-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
04
|
04
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.55 |
||
|
04
|
04
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
05
|
05
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
| replacement | |||||
|
05
|
05
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
06
|
06
J38-11116-00-00 Joint, Breather |
J38-11116-00-00 |
from US $1.70 |
||
|
07
|
07
93604-07141-00 Pin, Dowel |
93604-07141-00 |
from US $2.36 |
||
|
08
|
08
91609-30006-00 Pin, Spring |
91609-30006-00 |
from US $0.25 |
||
|
09
|
09
8K4-12633-00-00
Plate
|
8K4-12633-00-00 |
— | ||
|
10
|
10
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
10
|
10
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
