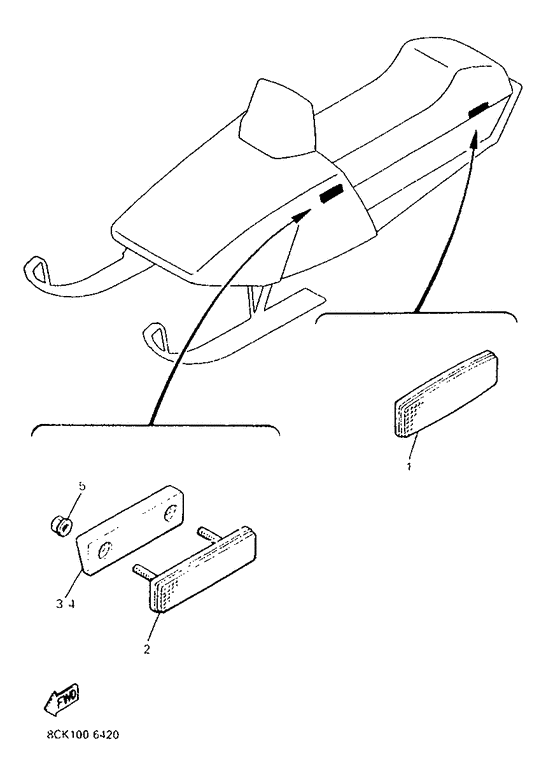

Electrical 2 Diagram Yamaha VT480 Venture 480 TF
- Model code
- 8CK2
- Engine Capacity
- 485
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Purplish Blue Metallic 7 (PBM7; 0549)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
|
02
|
02
81G-85110-00-00
Reflector Assy
|
81G-85110-00-00 |
— | ||
|
03
|
03
87K-8511E-00-00 Base,reflector 2 |
87K-8511E-00-00 |
from US $17.19 |
||
|
04
|
04
87K-8511F-00-00 Base, Reflector 3 |
87K-8511F-00-00 |
from US $17.19 |
||
|
05
|
05
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
