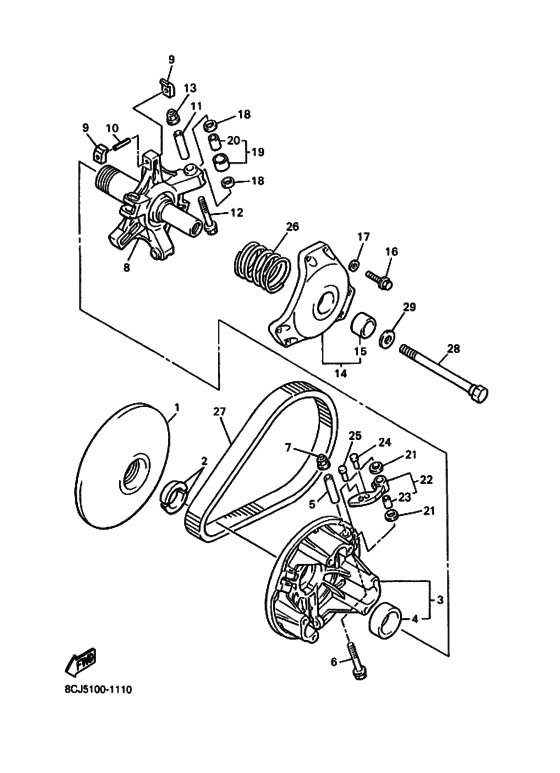

Primary sheave Diagram Yamaha VX500 Vmax 500 XT
- Model code
- 8CJ5
- Engine Capacity
- 494
- Year
- 2001
- Sales region
- Europe (020)
- Colour
- Silver Metallic 1 (SM1; 0660)
- Color Variant
- A
- Model
- V Max 500 XT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CR-17611-01-00
Sheave, Primary Fixe
|
8CR-17611-01-00 |
— | ||
| replacement | |||||
|
1
|
1
8CR-17611-02-00 Sheave, Primary Fixed |
8CR-17611-02-00 |
from US $128.95 |
||
|
2
|
2
8V0-17639-00-00 Stopper |
8V0-17639-00-00 |
from US $6.24 |
||
|
3
|
3
8BV-17620-03-00 Primary Sliding Sheave |
8BV-17620-03-00 |
from US $232.11 |
||
|
4
|
4
90384-41242-00 Bush, Bimetal Formed |
90384-41242-00 |
from US $28.86 |
||
|
5
|
5
903-87051-4T-00 Collar |
903-87051-4T-00 |
from US $9.44 |
||
|
6
|
6
90105-05644-00 Bolt, Flange |
90105-05644-00 |
from US $1.39 |
||
|
7
|
7
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
8
|
8
8CA-17640-12-00 Spider Complete |
8CA-17640-12-00 |
US $548.80 |
||
|
9
|
9
8BW-17653-00-00 Slider |
8BW-17653-00-00 |
from US $14.84 |
||
|
10
|
10
91609-50032-00 Pin, Spring |
91609-50032-00 |
from US $3.20 |
||
|
11
|
11
90387-0514U-00 Collar |
90387-0514U-00 |
from US $8.32 |
||
|
12
|
12
90105-05644-00 Bolt, Flange |
90105-05644-00 |
from US $1.39 |
||
|
13
|
13
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
14
|
14
8BV-17630-10-00 Primary Sheave Cap Comp |
8BV-17630-10-00 |
from US $97.68 |
||
| replacements | |||||
|
14
|
14
8BV-17630-11-00
Primary Sheave Cap
|
8BV-17630-11-00 |
— | ||
|
14
|
14
8BV-17630-12-00 Primary Sheave Cap |
8BV-17630-12-00 |
from US $97.68 |
||
|
15
|
15
90380-28237-00 Bush, Solid |
90380-28237-00 |
from US $24.41 |
||
|
16
|
16
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
90202-09227-00 Washer, Plate |
90202-09227-00 |
from US $1.66 |
||
|
19
|
19
8CR-17624-10-00 Roller, Comp |
8CR-17624-10-00 |
from US $58.03 |
||
|
20
|
20
90380-09245-00 Bush, Solid |
90380-09245-00 |
from US $34.14 |
||
|
21
|
21
902-02082-04-00 Washer, Plate |
902-02082-04-00 |
from US $1.66 |
||
|
22
|
22
8CR-17605-10-00 Weight Comp |
8CR-17605-10-00 |
from US $61.20 |
||
|
23
|
23
90380-08244-00 Bush, Solid |
90380-08244-00 |
from US $28.34 |
||
| replacement | |||||
|
23
|
23
903-80082-21-XX
Bush, Yxrc
|
903-80082-21-XX |
— | ||
|
24
|
24
90261-06028-00 Rivet, Countersunk (Al10.3Mm)IN |
90261-06028-00 |
from US $1.39 |
||
|
25
|
25
90261-06034-00 Rivet, Countersunk (St13.9Mm)OUT |
90261-06034-00 |
from US $1.66 |
||
|
26
|
26
90501-550J8-00 Spring, Compression(WH-P-WH) |
90501-550J8-00 |
from US $23.94 |
||
|
27
|
27
8CJ-17641-00-00 V-Belt |
8CJ-17641-00-00 |
from US $138.74 |
||
| replacements | |||||
|
27
|
27
89L-17641-01-00 V-Belt |
89L-17641-01-00 |
from US $104.43 |
||
|
27
|
27
89L-17641-02-00 V-Belt |
89L-17641-02-00 |
from US $104.43 |
||
|
28
|
28
8V0-17647-00-00 Bolt (L=156.5Mm) |
8V0-17647-00-00 |
from US $11.93 |
||
| replacement | |||||
|
28
|
28
8V0-17647-10-00 Bolt (L=156.5Mm) |
8V0-17647-10-00 |
from US $11.93 |
||
|
29
|
29
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.74 |
||
