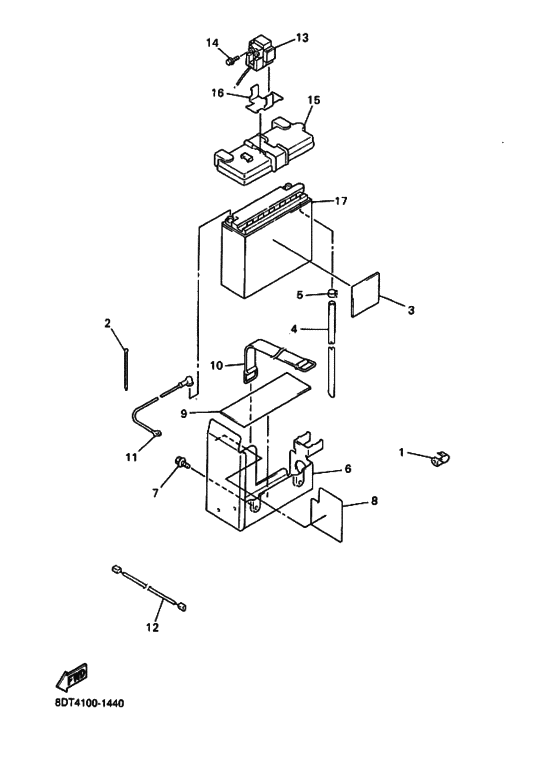

Electrical 2 Diagram Yamaha VX500 Vmax 500 Deluxe
- Model code
- 8DT4
- Engine Capacity
- 494
- Year
- 2001
- Sales region
- Europe (020)
- Colour
- Silver Metallic 1 (SM1; 0660)
- Color Variant
- A
- Model
- V Max 500 Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90465-10381-00 Clamp |
90465-10381-00 |
US $15.91 |
||
|
2
|
2
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
3
|
3
8CW-82176-00-00 Damper |
8CW-82176-00-00 |
from US $5.38 |
||
|
4
|
4
8CW-8235W-01-00 Pipe |
8CW-8235W-01-00 |
from US $4.26 |
||
|
5
|
5
90467-08092-00 Clip |
90467-08092-00 |
from US $1.39 |
||
|
6
|
6
8CW-2199G-00-00 Bracket, Battery |
8CW-2199G-00-00 |
US $118.93 |
||
|
7
|
7
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
7
|
7
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
8
|
8
8CW-2199H-00-00 Shield, Heat |
8CW-2199H-00-00 |
US $6.77 |
||
|
9
|
9
84N-82122-00-00 Seat, Battery |
84N-82122-00-00 |
from US $9.16 |
||
|
10
|
10
8CY-82131-00-00 Band, Battery |
8CY-82131-00-00 |
from US $11.90 |
||
|
11
|
11
8DY-82115-00-00 Wire, Plus Lead |
8DY-82115-00-00 |
from US $19.98 |
||
|
12
|
12
8DY-82509-00-00 Wire, Sub Lead |
8DY-82509-00-00 |
US $9.25 |
||
|
13
|
13
3EL-81940-00-00 Starter Relay Assy (Rc19-016) |
3EL-81940-00-00 |
from US $47.05 |
||
| replacement | |||||
|
13
|
13
3EL-81940-02-00 Starter Relay Assy (Rc19-016) |
3EL-81940-02-00 |
from US $31.52 |
||
|
14
|
14
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
15
|
15
8DX-82129-00-00 Cover, Battery |
8DX-82129-00-00 |
from US $37.45 |
||
| replacement | |||||
|
15
|
15
8DX-82129-01-00 Cover, Battery |
8DX-82129-01-00 |
from US $36.59 |
||
|
16
|
16
8CY-81952-00-00
Holder, Relay
|
8CY-81952-00-00 |
— | ||
|
17
|
17
5E3-82110-81-00
Yb16Ala2 Yuasa Batt
|
5E3-82110-81-00 |
— | ||
| replacements | |||||
|
17
|
17
YB1-6ALA2-00-00
Bat Yb16Al-A2 (Cb16Al-A2) Yu
|
YB1-6ALA2-00-00 |
— | ||
|
17
|
17
907-9EY00-03-00
Battery (Yb16Al-A2)
|
907-9EY00-03-00 |
— | ||
|
17
|
17
BTG-CB16A-LA-00
Battery
|
BTG-CB16A-LA-00 |
— | ||
