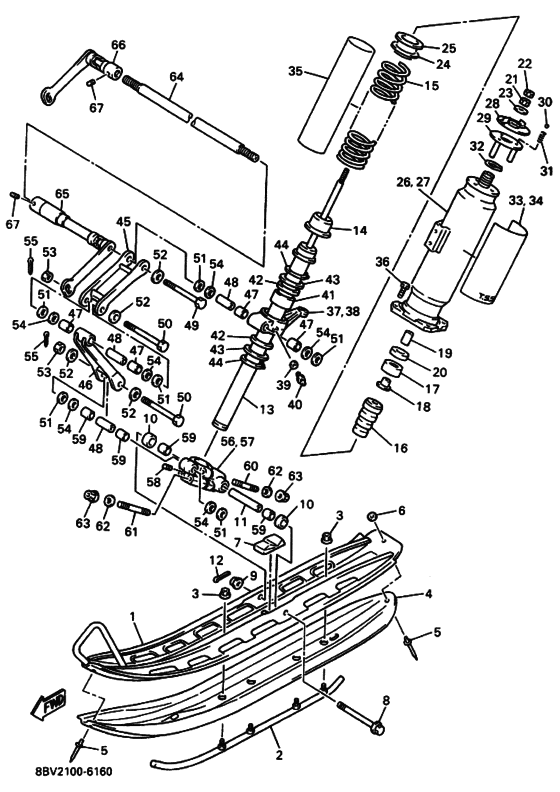

Ski Diagram Yamaha VX600 Vmax 600 XT
- Model code
- 8BV2
- Engine Capacity
- 593
- Year
- 1996
- Sales region
- Japan (010)
- Colour
- Dull Blue Metallic 2 (DBM2; 0472)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AB-23710-01-00 Ski Comp. 1．ＳＫＩ ＣＯＭＰ １; |
8AB-23710-01-00 |
US $465.57 |
||
|
2
|
2
8BP-23731-01-00
Runner 1
ＲＵＮＮＥＲ １; ＵＲ ＦＯＲ ＪＰＮ |
8BP-23731-01-00 |
— | ||
|
2
|
2
8CM-23731-00-00
Runner 1
ＲＵＮＮＥＲ １; ＵＲ ＦＯＲ ＵＳＡ |
8CM-23731-00-00 |
— | ||
|
2
|
2
8CM-23731-10-00
Runner 1
ＲＵＮＮＥＲ １; ＵＲ ＦＯＲ ＣＡＮ |
8CM-23731-10-00 |
— | ||
| replacements | |||||
|
2
|
2
8CM-23731-10-XX
Runner, Carbide Set
ＲＵＮＮＥＲ １; ＵＲ ＦＯＲ ＣＡＮ |
8CM-23731-10-XX |
— | ||
|
2
|
2
8CM-23731-00-XX
Runner 1
ＲＵＮＮＥＲ １; ＵＲ ＦＯＲ ＣＡＮ |
8CM-23731-00-XX |
— | ||
|
3
|
3
956-17082-00-00
Nut, Self-Locking
ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
956-17082-00-00 |
— | ||
| replacement | |||||
|
3
|
3
901-85081-69-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.35 |
||
|
4
|
4
8CM-23732-00-00
Runner 2
ＲＵＮＮＥＲ ２; |
8CM-23732-00-00 |
— | ||
| replacements | |||||
|
4
|
4
8AB-23732-00-XX
Sks Ski Skin Bk
ＲＵＮＮＥＲ ２; |
8AB-23732-00-XX |
— | ||
|
4
|
4
8AB-23732-11-RD Runner 2ＲＵＮＮＥＲ ２; |
8AB-23732-11-RD |
US $102.81 |
||
|
5
|
5
90267-48160-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48160-00 |
from US $2.69 |
||
|
6
|
6
902-01043-25-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
902-01043-25-00 |
— | ||
| replacements | |||||
|
6
|
6
90201-04027-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-04027-00 |
from US $1.35 |
||
|
6
|
6
902-01044-R6-00
Washer, Plate (90201-04325-00 )
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
902-01044-R6-00 |
— | ||
|
7
|
7
8AB-23743-01-00 Stopper 1ＳＴＯＰＰＥＲ １; |
8AB-23743-01-00 |
US $19.67 |
||
|
8
|
8
90105-10712-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10712-00 |
from US $9.98 |
||
|
9
|
9
956-17102-00-00
Nut, U Flange
ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
956-17102-00-00 |
— | ||
| replacement | |||||
|
9
|
9
956-07102-00-00 Nut, U FlangeＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
956-07102-00-00 |
from US $5.69 |
||
|
10
|
10
903-87140-2C-00
Collar
ＣＯＬＬＡＲ; |
903-87140-2C-00 |
— | ||
|
11
|
11
90387-1002P-00 CollarＣＯＬＬＡＲ; |
90387-1002P-00 |
from US $7.51 |
||
|
12
|
12
914-90200-25-00 Pin. CotterＰＩＮ， ＣＯＴＴＥＲ; |
914-90200-25-00 |
from US $1.66 |
||
|
13
|
13
8BV-22401-10-00 Damper Sub AssyＤＡＭＰＥＲ ＳＵＢ ＡＳＳＹ; |
8BV-22401-10-00 |
from US $318.58 |
||
|
14
|
14
8AY-23777-00-00
Seat, Spring 2
ＳＥＡＴ， ＳＰＲＩＮＧ ２; |
8AY-23777-00-00 |
— | ||
|
15
|
15
90501-753J5-00
Spring, Compression
ＳＰＲＩＮＧ， ＣＯＭＰＲＥＳＳＩＯＮ; |
90501-753J5-00 |
— | ||
|
16
|
16
87F-22493-00-00 Bump, StopＢＵＭＰ， ＳＴＯＰ; |
87F-22493-00-00 |
US $24.77 |
||
|
17
|
17
8AY-23788-00-00
Plate, Back Up
ＰＬＡＴＥ， ＢＡＣＫ ＵＰ; |
8AY-23788-00-00 |
— | ||
|
18
|
18
90387-0800J-00
Collar
ＣＯＬＬＡＲ; |
90387-0800J-00 |
— | ||
|
19
|
19
90387-0900H-00 CollarＣＯＬＬＡＲ; |
90387-0900H-00 |
US $4.73 |
||
|
20
|
20
82M-23779-00-00 WasherＷＡＳＨＥＲ; |
82M-23779-00-00 |
from US $3.26 |
||
|
21
|
21
90170-08220-00 NutＮＵＴ; |
90170-08220-00 |
US $3.68 |
||
| replacement | |||||
|
21
|
21
90170-08216-00 Nut, HexagonＮＵＴ; |
90170-08216-00 |
from US $2.88 |
||
|
22
|
22
95337-08600-00 NutＮＵＴ; |
95337-08600-00 |
from US $1.52 |
||
|
23
|
23
90201-083A6-00 Washer, Plate (3Y6)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-083A6-00 |
from US $3.26 |
||
|
24
|
24
90202-54215-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90202-54215-00 |
— | ||
|
25
|
25
8AY-23768-00-00
Seat, Spring 1
ＳＥＡＴ， ＳＰＲＩＮＧ １; |
8AY-23768-00-00 |
— | ||
|
26
|
26
8CM-2376J-00-00 Holder, AbsorberＨＯＬＤＥＲ， ＡＢＳＯＲＢＥＲ; （Ｌ，Ｈ） |
8CM-2376J-00-00 |
US $219.87 |
||
|
27
|
27
8CM-2377J-00-00 Holder, Absorber 2ＨＯＬＤＥＲ， ＡＢＳＯＲＢＥＲ ２; （Ｒ，Ｈ） |
8CM-2377J-00-00 |
US $219.87 |
||
|
28
|
28
8AY-23778-00-00
Nut
ＮＵＴ; |
8AY-23778-00-00 |
— | ||
|
29
|
29
8AY-23744-00-00
Stopper 2
ＳＴＯＰＰＥＲ ２; |
8AY-23744-00-00 |
— | ||
|
30
|
30
93503-16010-00 Ball 3-16ＢＡＬＬ; |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
30
|
30
93503-16003-00 BallＢＡＬＬ; |
93503-16003-00 |
from US $1.39 |
||
|
31
|
31
90501-080J6-00 Spring, CompressionＳＰＲＩＮＧ， ＣＯＭＰＲＥＳＳＩＯＮ; |
90501-080J6-00 |
US $4.55 |
||
|
32
|
32
99009-30400-00 CirclipＣＩＲＣＬＩＰ; |
99009-30400-00 |
from US $1.56 |
||
|
33
|
33
8BB-77371-00-00 Emblem 15ＥＭＢＬＥＭ １５; |
8BB-77371-00-00 |
US $27.61 |
||
|
34
|
34
8BB-77372-00-00 Emblem 15ＥＭＢＬＥＭ １６; |
8BB-77372-00-00 |
US $28.64 |
||
| replacement | |||||
|
34
|
34
8BB-77371-00-00 Emblem 15ＥＭＢＬＥＭ １６; |
8BB-77371-00-00 |
US $27.61 |
||
|
35
|
35
8CA-2376R-00-00 ProtectorＰＲＯＴＥＣＴＯＲ; |
8CA-2376R-00-00 |
US $14.65 |
||
|
36
|
36
970-17060-20-00 BoltＢＯＬＴ; |
970-17060-20-00 |
from US $1.16 |
||
|
37
|
37
82M-23851-00-00 Arm, Outside 1 (L,h)ＡＲＭ， ＯＵＴＳＩＤＥ １ ; Ｌ，Ｈ; （※１） |
82M-23851-00-00 |
from US $127.66 |
||
|
38
|
38
82M-23852-00-00 Arm, Outside 2 (R, H)ＡＲＭ， ＯＵＴＳＩＤＥ ２ ; Ｒ，Ｈ |
82M-23852-00-00 |
US $171.95 |
||
|
39
|
39
90201-067F9-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-067F9-00 |
from US $1.52 |
||
|
40
|
40
93700-06M03-00 Nipple, GreaseＮＩＰＰＬＥ， ＧＲＥＡＳＥ; |
93700-06M03-00 |
from US $3.04 |
||
|
41
|
41
903-84531-75-00 Bush, Bimetal FormedＢＵＳＨ， ＢＩＭＥＴＡＬ ＦＯＲＭＥＤ; |
903-84531-75-00 |
from US $16.78 |
||
|
42
|
42
93109-53036-00 Oil SealＯＩＬ ＳＥＡＬ; |
93109-53036-00 |
from US $5.68 |
||
|
43
|
43
90201-535H6-00 Washer, Plate (T=2.0)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ＝２０; ＵＲ |
90201-535H6-00 |
from US $3.60 |
||
|
43
|
43
90201-536A1-00 Washer, Plate (T=1.0)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ＝１０; ＵＲ |
90201-536A1-00 |
from US $3.60 |
||
|
44
|
44
93410-52061-00 CirclipＣＩＲＣＬＩＰ; |
93410-52061-00 |
from US $3.54 |
||
|
45
|
45
8AB-2382E-00-00 Arm, Front 1ＡＲＭ， ＦＲＯＮＴ １; |
8AB-2382E-00-00 |
US $147.91 |
||
|
46
|
46
8AB-2382F-00-00
Arm, Front 2
ＡＲＭ， ＦＲＯＮＴ ２; |
8AB-2382F-00-00 |
— | ||
|
47
|
47
90384-14091-00 Bush, Bimetal FormedＢＵＳＨ， ＢＩＭＥＴＡＬ ＦＯＲＭＥＤ; |
90384-14091-00 |
from US $4.16 |
||
|
48
|
48
90387-101Y9-00 CollarＣＯＬＬＡＲ; |
90387-101Y9-00 |
from US $5.13 |
||
|
49
|
49
90101-10732-00 BoltＢＯＬＴ; |
90101-10732-00 |
US $5.14 |
||
| replacements | |||||
|
49
|
49
901-01104-00-00
Bolt (8H0)
ＢＯＬＴ; |
901-01104-00-00 |
— | ||
|
49
|
49
90101-10040-00 BoltＢＯＬＴ; |
90101-10040-00 |
US $5.14 |
||
|
50
|
50
90102-10077-00
Bolt, With Hole
ＢＯＬＴ， ＷＩＴＨ ＨＯＬＥ; |
90102-10077-00 |
— | ||
|
51
|
51
90201-105A8-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-105A8-00 |
from US $4.39 |
||
|
52
|
52
90201-115A7-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-115A7-00 |
from US $1.70 |
||
|
53
|
53
90185-10091-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
90185-10091-00 |
from US $5.10 |
||
|
54
|
54
90209-14296-00 WasherＷＡＳＨＥＲ; |
90209-14296-00 |
from US $2.55 |
||
|
55
|
55
914-90200-25-00 Pin. CotterＰＩＮ， ＣＯＴＴＥＲ; |
914-90200-25-00 |
from US $1.66 |
||
|
56
|
56
84M-2376E-00-00 Bracket 1ＢＲＡＣＫＥＴ １; |
84M-2376E-00-00 |
from US $163.03 |
||
|
57
|
57
84M-2377E-00-00 Bracket 2ＢＲＡＣＫＥＴ ２; |
84M-2377E-00-00 |
from US $163.03 |
||
|
58
|
58
90113-06055-00 Bolt, SetＢＯＬＴ， ＳＥＴ; |
90113-06055-00 |
from US $1.84 |
||
| replacement | |||||
|
58
|
58
90113-06039-00 Bolt, Set (8K2)ＢＯＬＴ， ＳＥＴ; |
90113-06039-00 |
from US $1.84 |
||
|
59
|
59
90384-14091-00 Bush, Bimetal FormedＢＵＳＨ， ＢＩＭＥＴＡＬ ＦＯＲＭＥＤ; |
90384-14091-00 |
from US $4.16 |
||
|
60
|
60
95617-08655-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
95617-08655-00 |
from US $5.81 |
||
|
61
|
61
95617-08640-00 Bolt, Stud 3ＢＯＬＴ， ＳＴＵＤ; |
95617-08640-00 |
from US $4.53 |
||
|
62
|
62
929-07086-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-07086-00-00 |
from US $1.39 |
||
|
63
|
63
95707-08300-00 Nut, NylonＮＵＴ， ＦＬＡＮＧＥ; |
95707-08300-00 |
from US $3.02 |
||
| replacement | |||||
|
63
|
63
957-17083-00-00 Nut, FlangeＮＵＴ， ＦＬＡＮＧＥ; |
957-17083-00-00 |
from US $3.26 |
||
|
64
|
64
8AB-2386E-01-00 Bar, Stabilizer FrontＢＡＲ， ＳＴＡＢＩＬＩＺＥＲ ＦＲＯＮＴ; |
8AB-2386E-01-00 |
US $573.14 |
||
|
65
|
65
8CL-2385L-00-00 Joint, Stabilizer 1ＪＯＩＮＴ， ＳＴＡＢＩＬＩＺＥＲ １; |
8CL-2385L-00-00 |
from US $348.55 |
||
|
66
|
66
8CL-2385M-00-00 Joint, Stabilizer 2ＪＯＩＮＴ， ＳＴＡＢＩＬＩＺＥＲ ２; |
8CL-2385M-00-00 |
from US $198.67 |
||
|
67
|
67
90113-06055-00 Bolt, SetＢＯＬＴ， ＳＥＴ; |
90113-06055-00 |
from US $1.84 |
||
| replacement | |||||
|
67
|
67
90113-06039-00 Bolt, Set (8K2)ＢＯＬＴ， ＳＥＴ; |
90113-06039-00 |
from US $1.84 |
||
