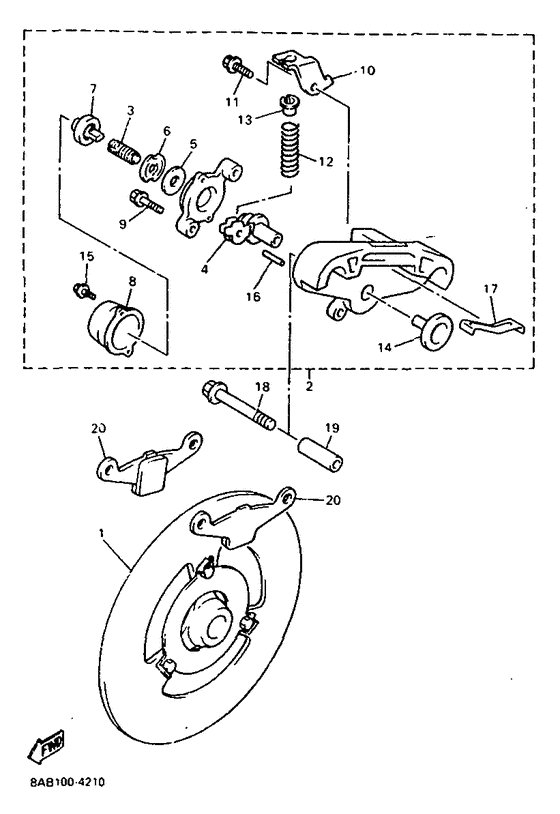

Brake Diagram Yamaha VX600 Vmax 600 XT
- Model code
- 8BV2
- Engine Capacity
- 593
- Year
- 1996
- Sales region
- Canada (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8AB-25830-02-00 Disk Brake Assy |
8AB-25830-02-00 |
US $251.75 |
||
|
02
|
02
8AB-25730-00-00
Caliper Body Comp.1
|
8AB-25730-00-00 |
— | ||
|
03
|
03
86M-25738-00-00 Screw, Adjusting 1 |
86M-25738-00-00 |
from US $7.37 |
||
|
04
|
04
86M-25726-01-00
Lever, Brake
|
86M-25726-01-00 |
— | ||
|
05
|
05
86M-25827-00-00 Shim, Caliper |
86M-25827-00-00 |
from US $1.56 |
||
|
06
|
06
86M-25773-00-00 Lock, One Way 2 |
86M-25773-00-00 |
from US $7.37 |
||
|
07
|
07
89A-25771-00-00
Ratchet, Adjusting
|
89A-25771-00-00 |
— | ||
|
08
|
08
86M-25772-00-00 Cover |
86M-25772-00-00 |
from US $29.89 |
||
|
09
|
09
86M-25818-00-00 Bolt, Caliper |
86M-25818-00-00 |
from US $3.68 |
||
|
10
|
10
8AB-25721-00-00
Bracket, Caliper
|
8AB-25721-00-00 |
— | ||
|
11
|
11
86M-25826-00-00 Bolt 3 |
86M-25826-00-00 |
from US $1.56 |
||
|
12
|
12
86M-25743-00-00 Spring, Compression |
86M-25743-00-00 |
US $8.87 |
||
|
13
|
13
87R-25722-00-00 Bracket, Adjusting |
87R-25722-00-00 |
from US $37.03 |
||
|
14
|
14
89A-25733-00-00 Plate, Back Up |
89A-25733-00-00 |
US $23.22 |
||
|
15
|
15
86M-25833-00-00 Bolt, Fitting |
86M-25833-00-00 |
from US $1.56 |
||
|
16
|
16
86M-25744-00-00 Pin 2 |
86M-25744-00-00 |
from US $1.56 |
||
|
17
|
17
89A-25736-00-00 Hook, Spring |
89A-25736-00-00 |
US $15.46 |
||
|
18
|
18
90105-10711-00 Bolt, Washer Based(4Hm) |
90105-10711-00 |
from US $7.37 |
||
| replacement | |||||
|
18
|
18
90105-10737-00 Bolt, Flange |
90105-10737-00 |
from US $7.37 |
||
|
19
|
19
90387-105Y1-00
Collar
|
90387-105Y1-00 |
— | ||
|
20
|
20
89A-25811-01-00 Pad, Caliper 2 |
89A-25811-01-00 |
from US $61.90 |
||
