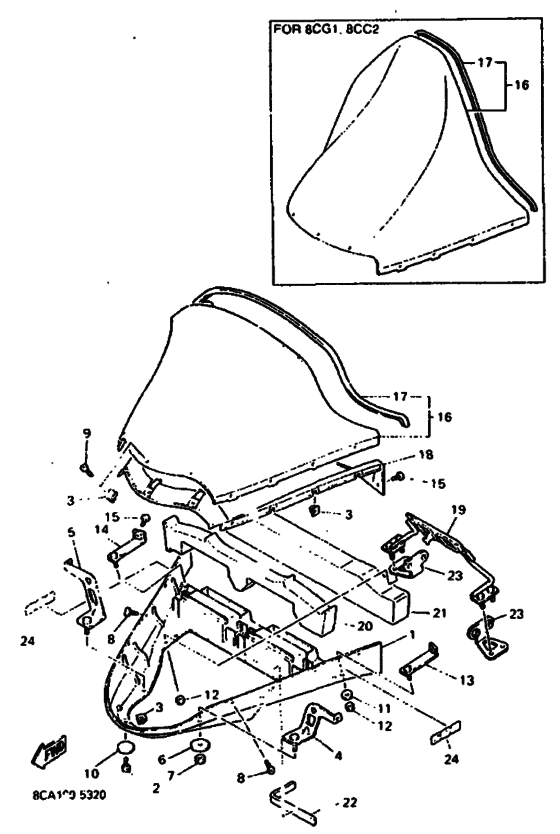

Windshield Diagram Yamaha VX600 Vmax 600
- Model code
- 8CA2
- Engine Capacity
- 593
- Year
- 1995
- Sales region
- Europe (020)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89A-77231-00-00
Fairing
UR FOR 8CA2, 8CF2^BLACK |
89A-77231-00-00 |
— | ||
|
1
|
1
8AB-77231-00-00
Fairing
UR FOR 8CA2, 8CC2^RED |
8AB-77231-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR FOR 8CA2, 8CC2^RED |
999-99999-99-00 |
— | ||
|
1
|
1
8CL-77231-00-00
Fairing
UR FOR 8CG1 |
8CL-77231-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR FOR 8CG1 |
999-99999-99-00 |
— | ||
|
2
|
2
97706-05016-00 Screw, Tapping |
97706-05016-00 |
US $2.52 |
||
| replacement | |||||
|
2
|
2
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
3
|
3
89A-77144-00-00 Nut |
89A-77144-00-00 |
from US $8.96 |
||
|
4
|
4
8AB-77125-00-00
Stay 1
|
8AB-77125-00-00 |
— | ||
|
5
|
5
8AB-77126-00-00
Stay 2
|
8AB-77126-00-00 |
— | ||
|
6
|
6
90201-082E7-00 Washer, Plate |
90201-082E7-00 |
from US $2.70 |
||
| replacement | |||||
|
6
|
6
90201-083A6-00 Washer, Plate (3Y6) |
90201-083A6-00 |
from US $3.26 |
||
|
7
|
7
95307-08600-00 Nut, Hex |
95307-08600-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
|
8
|
8
90154-05042-00 Screw, Binding |
90154-05042-00 |
from US $2.55 |
||
| replacement | |||||
|
8
|
8
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
9
|
9
90150-05028-00 Screw, Round Head |
90150-05028-00 |
from US $1.70 |
||
|
10
|
10
90201-052E8-00 Washer, Plate |
90201-052E8-00 |
from US $1.70 |
||
|
11
|
11
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
12
|
12
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
13
|
13
89A-77153-00-00 Plate, Back Up 1UP 1 |
89A-77153-00-00 |
US $12.24 |
||
|
14
|
14
89A-77154-00-00 Plate, Back Up 2UP 2 |
89A-77154-00-00 |
from US $12.71 |
||
|
15
|
15
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.81 |
||
|
16
|
16
89A-77210-00-00
Windshield Comp. (89A-77210-00-
UR FOR 8CA2, 8CF2 |
89A-77210-00-00 |
— | ||
| replacements | |||||
|
16
|
16
89A-77210-00-XX
Windshield Comp. (89A-77210-00-
UR FOR 8CA2, 8CF2 |
89A-77210-00-XX |
— | ||
|
16
|
16
89A-77210-10-00
Windshield Comp
UR FOR 8CA2, 8CF2 |
89A-77210-10-00 |
— | ||
|
16
|
16
8CL-77210-00-00 Windshield CompUR FOR 8CG1, 8CC2 |
8CL-77210-00-00 |
US $317.91 |
||
| replacement | |||||
|
16
|
16
8CL-77210-00-XX
T-UP NEW YAM BLACK
UR FOR 8CG1, 8CC2 |
8CL-77210-00-XX |
— | ||
|
17
|
17
89A-77213-00-00 Trim, UpperUR FOR 8CA2, 8CF2 |
89A-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
17
|
17
87K-77213-00-00
Trim, Upper
UR FOR 8CA2, 8CF2 |
87K-77213-00-00 |
— | ||
|
17
|
17
8CL-77213-00-00 Trim, UpperUR FOR 8CG1, 8CC2 |
8CL-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
17
|
17
87K-77213-00-00
Trim, Upper
UR FOR 8CG1, 8CC2 |
87K-77213-00-00 |
— | ||
|
18
|
18
89A-77251-00-00
Cover, Headlight
|
89A-77251-00-00 |
— | ||
|
19
|
19
89A-83519-00-00 Bracket, Meter |
89A-83519-00-00 |
from US $107 |
||
|
20
|
20
8AB-77268-00-00 Lining,shroud 8 |
8AB-77268-00-00 |
US $19.58 |
||
|
21
|
21
89A-2199J-00-00 Shield, Noise 2 |
89A-2199J-00-00 |
from US $77.78 |
||
|
22
|
22
1NL-28378-00-00 Pad |
1NL-28378-00-00 |
US $3.69 |
||
|
23
|
23
8AB-77127-00-00 Stay 3 |
8AB-77127-00-00 |
US $19.22 |
||
|
24
|
24
8CA-77142-00-00
Emblem 2
UR FOR 8CA2, 8CF2^YB |
8CA-77142-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
UR FOR 8CA2, 8CF2^YB |
999-99999-99-00 |
— | ||
|
24
|
24
8CA-77142-10-00
Emblem 2
UR FOR 8CA2, 8CC2^FIR |
8CA-77142-10-00 |
— | ||
|
24
|
24
8CG-77142-00-00
Emblem 2
UR FOR 8CG1 |
8CG-77142-00-00 |
— | ||
