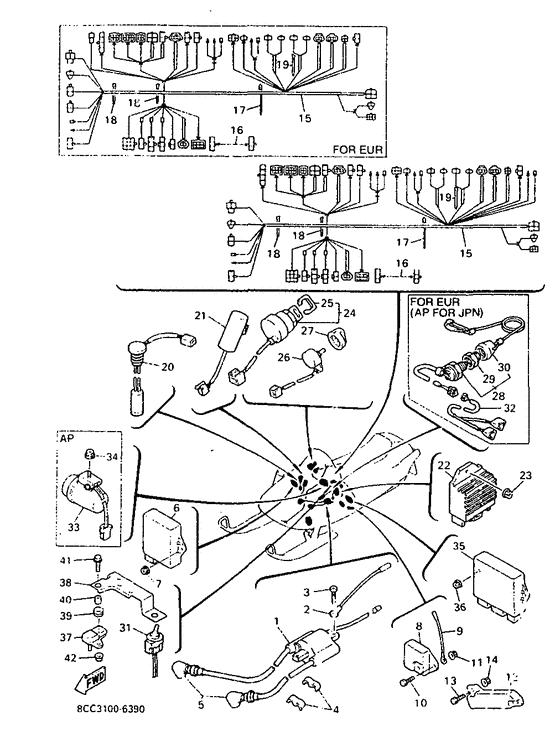

Electrical 1 Diagram Yamaha VX600 Vmax 600 ST
- Model code
- 8CC3
- Engine Capacity
- 593
- Year
- 1996
- Sales region
- Canada (999)
- Colour
- Fire Red (FIR; 00FH)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8AB-82310-00-00 Ignition Coil Assy |
8AB-82310-00-00 |
from US $82.36 |
||
| replacement | |||||
|
01
|
01
8AB-82310-09-00 Ignition Coil Assy |
8AB-82310-09-00 |
from US $82.36 |
||
|
02
|
02
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
| replacement | |||||
|
02
|
02
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
03
|
03
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
03
|
03
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
04
|
04
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
05
|
05
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
05
|
05
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
06
|
06
8CA-85540-10-00 C.d.i. Unit Assy |
8CA-85540-10-00 |
from US $533.95 |
||
|
07
|
07
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
08
|
08
82M-81910-A0-00 Voltage Regulator Assy |
82M-81910-A0-00 |
from US $59.55 |
||
|
09
|
09
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
| replacement | |||||
|
09
|
09
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
10
|
10
97007-06014-00 Bolt |
97007-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
11
|
11
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
12
|
12
1JK-81960-A1-00 Rectifier & Regulator Assy |
1JK-81960-A1-00 |
from US $158.88 |
||
|
13
|
13
97007-06014-00 Bolt |
97007-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
14
|
14
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
15
|
15
8CC-82590-00-00
Wire Harness Assy
Ur for usa/can/jpn |
8CC-82590-00-00 |
— | ||
|
15
|
15
8CC-82590-50-00
Wire Harness Assy
Ur for eur |
8CC-82590-50-00 |
— | ||
|
16
|
16
8AB-8471G-00-00
Wire, Lead
|
8AB-8471G-00-00 |
— | ||
|
17
|
17
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
18
|
18
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
18
|
18
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
19
|
19
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
20
|
20
3E1-85720-12-00 Oil Level Gauge Assy |
3E1-85720-12-00 |
from US $40.66 |
||
| replacement | |||||
|
20
|
20
3E1-85720-15-00 Oil Level Gauge Assy |
3E1-85720-15-00 |
from US $48.22 |
||
|
21
|
21
1NL-81965-01-00 Condenser, Smoothing |
1NL-81965-01-00 |
from US $121.72 |
||
|
22
|
22
8AB-81910-00-00 Voltage Regulator Assy |
8AB-81910-00-00 |
US $120.44 |
||
|
23
|
23
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
23
|
23
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
24
|
24
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
24
|
24
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
25
|
25
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
26
|
26
8AB-87283-00-00 Resistor, Variable |
8AB-87283-00-00 |
from US $21.15 |
||
| replacement | |||||
|
26
|
26
8CR-87283-00-00
Resistor, Variable
|
8CR-87283-00-00 |
— | ||
|
27
|
27
8AB-87284-00-00 Knob, Variable Resistor |
8AB-87284-00-00 |
from US $8.23 |
||
|
28
|
28
8H8-82550-01-00 Engine Stop Switch AssemblyUr std for eur ur ap for jpn |
8H8-82550-01-00 |
from US $49.74 |
||
|
29
|
29
8H8-82557-00-00 Nut |
8H8-82557-00-00 |
from US $3.68 |
||
|
30
|
30
8H8-82552-09-00 Cap, Switch |
8H8-82552-09-00 |
from US $42.28 |
||
|
31
|
31
8CC-8399Y-00-00 Fuel Switch Comp |
8CC-8399Y-00-00 |
from US $107.99 |
||
|
32
|
32
89L-82318-00-00 Wire, Sub-LeadUr ap for jpn |
89L-82318-00-00 |
from US $29.61 |
||
|
33
|
33
8CL-83383-00-00
Buzzer
Ur ap (for reverse gear) |
8CL-83383-00-00 |
— | ||
|
34
|
34
956-07062-00-00
Nut, U Flange
Ur ap (for reverse gear) |
956-07062-00-00 |
— | ||
| replacement | |||||
|
34
|
34
95604-06200-00 Nut, U FlangeUr ap (for reverse gear) |
95604-06200-00 |
from US $1.52 |
||
|
35
|
35
8CC-85940-00-00
Electronic Control Unit Assy
|
8CC-85940-00-00 |
— | ||
|
36
|
36
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
37
|
37
8CC-82380-00-00 Sensor, Pressure |
8CC-82380-00-00 |
US $398.18 |
||
|
38
|
38
8CC-23899-00-00
Bracket 14
|
8CC-23899-00-00 |
— | ||
|
39
|
39
90480-13163-00 Grommet |
90480-13163-00 |
from US $1.70 |
||
|
40
|
40
90387-060G7-00 Collar(47X) |
90387-060G7-00 |
from US $1.35 |
||
|
41
|
41
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
42
|
42
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
