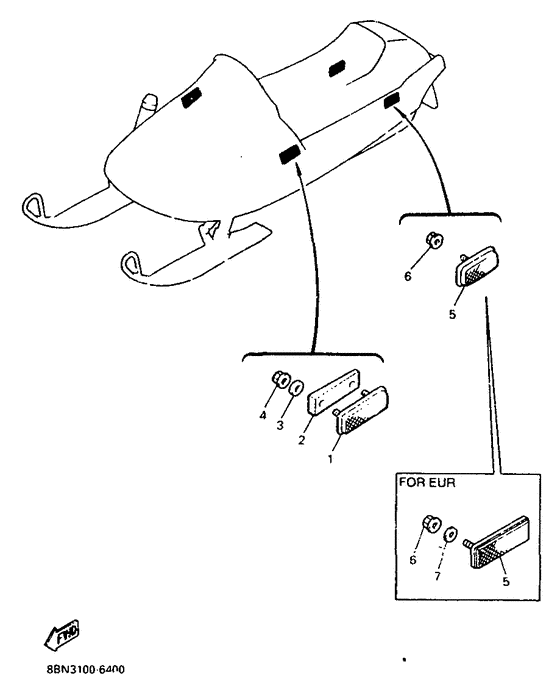

Electrical 2 Diagram Yamaha VX600 Vmax 600 ST
- Model code
- 8CC3
- Engine Capacity
- 593
- Year
- 1996
- Sales region
- Canada (999)
- Colour
- Fire Red (FIR; 00FH)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
80E-85110-00-00 Reflector Assembly |
80E-85110-00-00 |
US $20.41 |
||
| replacement | |||||
|
01
|
01
81E-85110-00-00
Reflector Assembly
|
81E-85110-00-00 |
— | ||
|
02
|
02
80F-85115-00-00 Base, Reflector |
80F-85115-00-00 |
from US $3.44 |
||
|
03
|
03
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
04
|
04
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
05
|
05
3Y6-85130-02-00 ReflectorUr for usa/can/jpn |
3Y6-85130-02-00 |
from US $11.12 |
||
|
05
|
05
8Y7-85130-00-00 Rear Reflector AssyUr for eur |
8Y7-85130-00-00 |
US $22.34 |
||
|
06
|
06
95707-05300-00 Nut, FlangeUr for eur |
95707-05300-00 |
from US $1.42 |
||
|
06
|
06
95707-05500-00 Nut, FlangeUr for usa/can/jpn |
95707-05500-00 |
from US $1.07 |
||
|
07
|
07
92907-05200-00 WasherUr for eur |
92907-05200-00 |
from US $1.56 |
||
