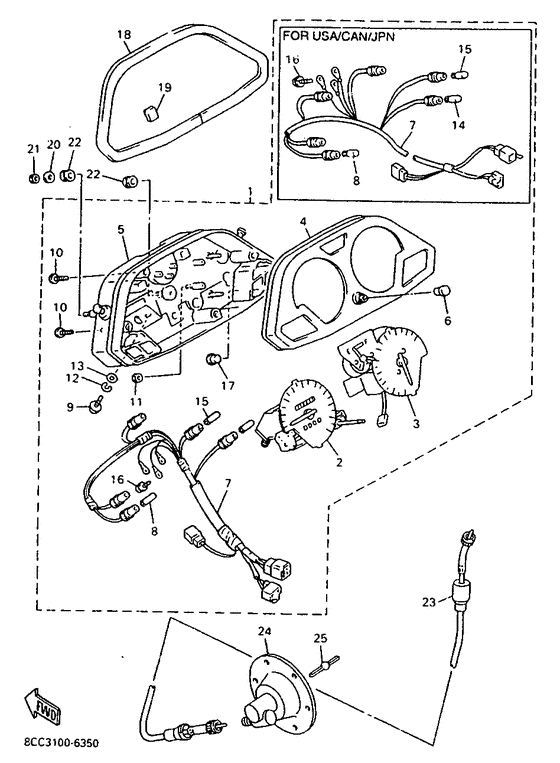

Meter Diagram Yamaha VX600 Vmax 600 ST
- Model code
- 8CC3
- Engine Capacity
- 593
- Year
- 1996
- Sales region
- Canada (999)
- Colour
- Fire Red (FIR; 00FH)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CC-83500-20-00
Meter Assy
Ur for can/jpn |
8CC-83500-20-00 |
— | ||
|
01
|
01
8CC-83500-30-00
Meter Assy
Ur for eur |
8CC-83500-30-00 |
— | ||
|
01
|
01
8CC-83500-40-00
Meter Assy
Ur for usa |
8CC-83500-40-00 |
— | ||
|
02
|
02
89A-83580-21-00
Speeddometer Assy (Km/h)
Ur for can/eur/jpn |
89A-83580-21-00 |
— | ||
| replacement | |||||
|
02
|
02
8CR-83580-20-00
Speedometer Assy (Km/h)
Ur for can/eur/jpn |
8CR-83580-20-00 |
— | ||
|
02
|
02
89A-83580-41-00 Speedometer Assy (Mile/h)Ur for usa |
89A-83580-41-00 |
US $305.14 |
||
| replacement | |||||
|
02
|
02
8CR-83580-40-00 Speedometer Assy (Mile/h)Speedometer assy Ur for usa |
8CR-83580-40-00 |
US $305.14 |
||
|
03
|
03
89A-83540-42-00
Tachometer Assy
|
89A-83540-42-00 |
— | ||
|
04
|
04
8CC-83559-30-00
Cover, Meter
|
8CC-83559-30-00 |
— | ||
|
05
|
05
89A-8353H-40-00 Case, Under (8As-8353H-20-00)Ur for usa/can/jpn |
89A-8353H-40-00 |
from US $89.99 |
||
|
05
|
05
8AS-8353H-20-00 Case, UnderUr for eur |
8AS-8353H-20-00 |
from US $89.99 |
||
| replacement | |||||
|
05
|
05
89A-8353H-40-00 Case, Under (8As-8353H-20-00)Ur for eur |
89A-8353H-40-00 |
from US $89.99 |
||
|
06
|
06
29L-83578-00-00 Knob, Trip Meter |
29L-83578-00-00 |
from US $12.18 |
||
|
07
|
07
8CC-83509-30-00
Socket Cord Assy
Ur for eur |
8CC-83509-30-00 |
— | ||
|
07
|
07
8CC-83509-40-00
Socket Cord Assy
Ur for usa/can/jpn |
8CC-83509-40-00 |
— | ||
|
08
|
08
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
08
|
08
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
09
|
09
97607-04312-00 Screw, Pan Head |
97607-04312-00 |
from US $1.07 |
||
| replacement | |||||
|
09
|
09
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
10
|
10
97707-40014-00 Screw, Tapping |
97707-40014-00 |
from US $1.56 |
||
|
11
|
11
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
12
|
12
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
13
|
13
92907-04200-00 Washer |
92907-04200-00 |
from US $1.56 |
||
|
14
|
14
4N0-83516-00-00 BulbUr for usa/can/jpn |
4N0-83516-00-00 |
from US $2.02 |
||
|
15
|
15
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
16
|
16
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
17
|
17
4BE-8352K-00-00 Plug, BlindUr for eur |
4BE-8352K-00-00 |
from US $2.50 |
||
|
18
|
18
89A-77225-00-00 Trim 5 |
89A-77225-00-00 |
US $15.73 |
||
|
19
|
19
89A-77198-00-00
Damper 1
|
89A-77198-00-00 |
— | ||
|
20
|
20
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
20
|
20
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
21
|
21
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
22
|
22
5J0-83513-00-00 Damper |
5J0-83513-00-00 |
from US $7.51 |
||
|
23
|
23
8AB-83550-00-00 Speedometer Cable Assembly |
8AB-83550-00-00 |
US $53.21 |
||
|
24
|
24
83R-47700-00-00 Meter Gear Housing Comp |
83R-47700-00-00 |
from US $78.98 |
||
|
25
|
25
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $3.72 |
||
