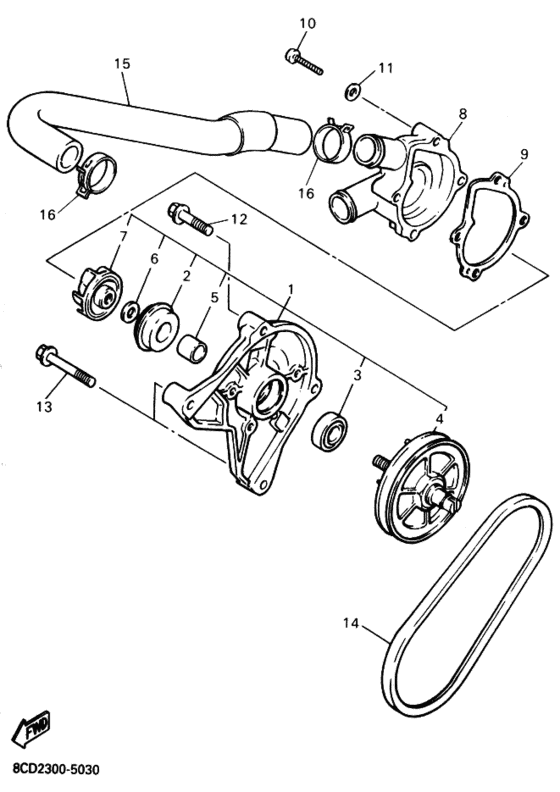

Water pump Diagram Yamaha VX600 Vmax 600 E
- Model code
- 8CF2
- Engine Capacity
- 593
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AB-W1247-01-00 Housing, Water PumpＨＯＵＳＩＮＧ， ＷＡＴＥＲ ＰＵＭＰ; |
8AB-W1247-01-00 |
US $287.37 |
||
| replacement | |||||
|
1
|
1
8AB-W1247-03-00 Water Pump HousingＨＯＵＳＩＮＧ， ＷＡＴＥＲ ＰＵＭＰ; |
8AB-W1247-03-00 |
from US $162.70 |
||
|
2
|
2
82M-12438-00-00
Seal, Mechanical
・ＳＥＡＬ， ＭＥＣＨＡＮＩＣＡＬ; |
82M-12438-00-00 |
— | ||
|
3
|
3
93306-20117-00 Bearing・ＢＥＡＲＩＮＧ; |
93306-20117-00 |
from US $18.14 |
||
|
4
|
4
8AB-12450-00-00 Housing, Water Pump・ＩＭＰＥＬＬＥＲ ＳＨＡＦＴ ＡＳＳＹ; |
8AB-12450-00-00 |
US $287.37 |
||
| replacement | |||||
|
4
|
4
8AB-W1247-03-00 Water Pump Housing・ＩＭＰＥＬＬＥＲ ＳＨＡＦＴ ＡＳＳＹ; |
8AB-W1247-03-00 |
from US $162.70 |
||
|
5
|
5
82M-12437-00-00 Stopper・ＳＴＯＰＰＥＲ; |
82M-12437-00-00 |
US $6.10 |
||
|
6
|
6
90201-08088-00 Washer, Plate 2562171800・ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-08088-00 |
from US $1.71 |
||
|
7
|
7
82M-12451-00-00 Impeller, Water Pump・ＩＭＰＥＬＬＥＲ， ＷＡＴＥＲ ＰＵＭＰ; |
82M-12451-00-00 |
US $71.51 |
||
|
8
|
8
8AB-12422-01-00
Cover, Housing
ＣＯＶＥＲ， ＨＯＵＳＩＮＧ; |
8AB-12422-01-00 |
— | ||
|
9
|
9
82M-12427-01-00
Gasket, Housing Cover 1
ＧＡＳＫＥＴ， ＨＯＵＳＩＮＧ ＣＯＶＥＲ １; |
82M-12427-01-00 |
— | ||
|
10
|
10
98507-06035-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98507-06035-00 |
from US $1.39 |
||
|
11
|
11
92907-06600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
95827-08040-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08040-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-08040-00 |
from US $1.07 |
||
|
13
|
13
95827-08110-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08110-00 |
from US $3.42 |
||
| replacements | |||||
|
13
|
13
90105-08094-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-08094-00 |
from US $3.38 |
||
|
13
|
13
95817-08110-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-08110-00 |
from US $5.38 |
||
|
14
|
14
82M-12444-00-00 Belt 1ＢＥＬＴ １; |
82M-12444-00-00 |
from US $16.78 |
||
|
15
|
15
82M-12481-00-00
Pipe 1
ＰＩＰＥ １; |
82M-12481-00-00 |
— | ||
|
16
|
16
90467-28046-00 Clip (8M6)ＣＬＩＰ; |
90467-28046-00 |
from US $3.54 |
||
