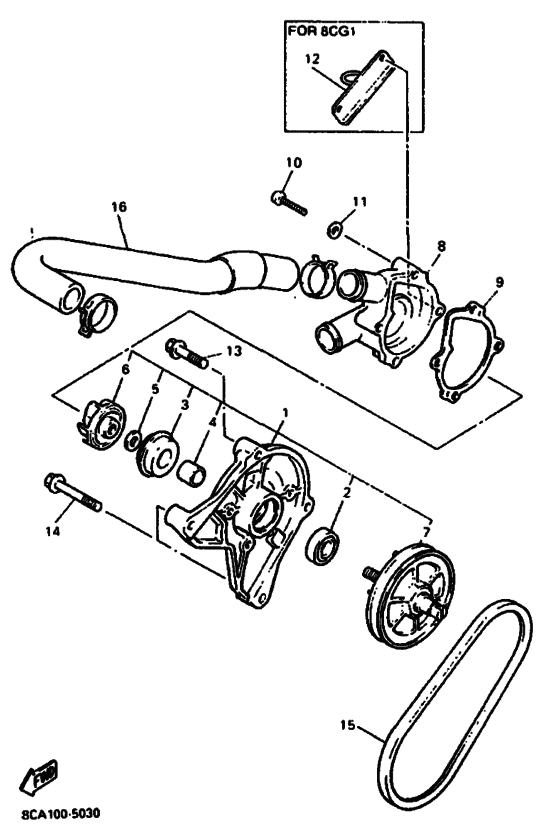

Water pump Diagram Yamaha VX600 Vmax 600 E
- Model code
- 8CF2
- Engine Capacity
- 593
- Year
- 1995
- Sales region
- Europe (040)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AB-W1247-01-00 Housing, Water Pump |
8AB-W1247-01-00 |
US $287.37 |
||
| replacement | |||||
|
1
|
1
8AB-W1247-03-00 Water Pump Housing |
8AB-W1247-03-00 |
from US $162.70 |
||
|
2
|
2
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
3
|
3
82M-12438-00-00
Seal, Mechanical
|
82M-12438-00-00 |
— | ||
|
4
|
4
82M-12437-00-00 Stopper |
82M-12437-00-00 |
US $6.10 |
||
|
5
|
5
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.71 |
||
|
6
|
6
82M-12451-00-00 Impeller, Water Pump |
82M-12451-00-00 |
US $71.51 |
||
|
7
|
7
8AB-12450-00-00 Housing, Water Pump |
8AB-12450-00-00 |
US $287.37 |
||
| replacement | |||||
|
7
|
7
8AB-W1247-03-00 Water Pump Housing |
8AB-W1247-03-00 |
from US $162.70 |
||
|
8
|
8
8AB-12422-01-00
Cover, Housing
|
8AB-12422-01-00 |
— | ||
|
9
|
9
82M-12427-01-00
Gasket, Housing Cover 1
|
82M-12427-01-00 |
— | ||
|
10
|
10
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
8BB-15779-00-00
Cover
UR FOR 8CG1 |
8BB-15779-00-00 |
— | ||
|
13
|
13
95827-08040-00 Bolt, Flange |
95827-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
14
|
14
95827-08110-00 Bolt, Flange |
95827-08110-00 |
from US $3.42 |
||
| replacements | |||||
|
14
|
14
90105-08094-00 Bolt, Flange |
90105-08094-00 |
from US $3.38 |
||
|
14
|
14
95817-08110-00 Bolt, Flange |
95817-08110-00 |
from US $5.38 |
||
|
15
|
15
82M-12444-00-00 Belt 1 |
82M-12444-00-00 |
from US $16.78 |
||
|
16
|
16
82M-12481-00-00
Pipe 1
|
82M-12481-00-00 |
— | ||
