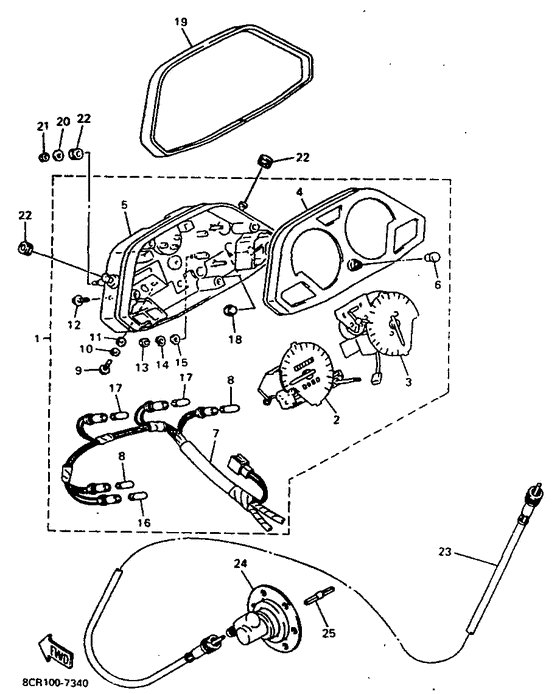

Meter Diagram Yamaha VX600 Vmax 600 XT
- Model code
- 8CR2
- Engine Capacity
- 593
- Year
- 1998
- Sales region
- Canada (999)
- Colour
- Yamaha Black (YB; 0033)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-83500-20-00
Speedometer Assy
Ur for can/eur |
8CR-83500-20-00 |
— | ||
|
02
|
02
8CR-83580-20-00
Speedometer Assy (Km/h)
Ur for can/eur |
8CR-83580-20-00 |
— | ||
|
03
|
03
8CR-83540-40-00 Tachometer Assy |
8CR-83540-40-00 |
from US $321.91 |
||
|
04
|
04
8CR-83559-40-00 Cover, Meter |
8CR-83559-40-00 |
US $183.78 |
||
|
05
|
05
8CR-8353H-40-00 Case, Under |
8CR-8353H-40-00 |
from US $89.99 |
||
| replacement | |||||
|
05
|
05
89A-8353H-40-00 Case, Under (8As-8353H-20-00) |
89A-8353H-40-00 |
from US $89.99 |
||
|
06
|
06
29L-83578-00-00 Knob, Trip Meter |
29L-83578-00-00 |
from US $12.18 |
||
|
07
|
07
8CR-83509-40-00 Socket Cord Assy |
8CR-83509-40-00 |
from US $59.95 |
||
|
08
|
08
4R0-83517-00-00 Bulb (12V-3.4W T10) |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
08
|
08
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
08
|
08
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
09
|
09
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
10
|
10
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
11
|
11
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
12
|
12
97707-40014-00 Screw, Tapping |
97707-40014-00 |
from US $1.56 |
||
|
13
|
13
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
14
|
14
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
15
|
15
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
16
|
16
4N0-83516-00-00 Bulb |
4N0-83516-00-00 |
from US $2.02 |
||
|
17
|
17
1YT-83517-00-00 Bulb (12V-1.7W T10) |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
17
|
17
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
18
|
18
4BE-8352K-00-00 Plug, Blind |
4BE-8352K-00-00 |
from US $2.50 |
||
|
19
|
19
8CR-77225-00-00 Trim 5 |
8CR-77225-00-00 |
from US $14.22 |
||
|
20
|
20
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
21
|
21
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
22
|
22
5J0-83513-00-00 Damper |
5J0-83513-00-00 |
from US $7.51 |
||
|
23
|
23
8CR-83550-00-00 Speedometer Cable Assy |
8CR-83550-00-00 |
from US $38.47 |
||
| replacement | |||||
|
23
|
23
8CR-83550-10-00 Speedometer Cable Assy |
8CR-83550-10-00 |
from US $38.47 |
||
|
24
|
24
8CR-47700-00-00 Meter Gear Housing Comp |
8CR-47700-00-00 |
from US $139.52 |
||
|
25
|
25
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $3.72 |
||
