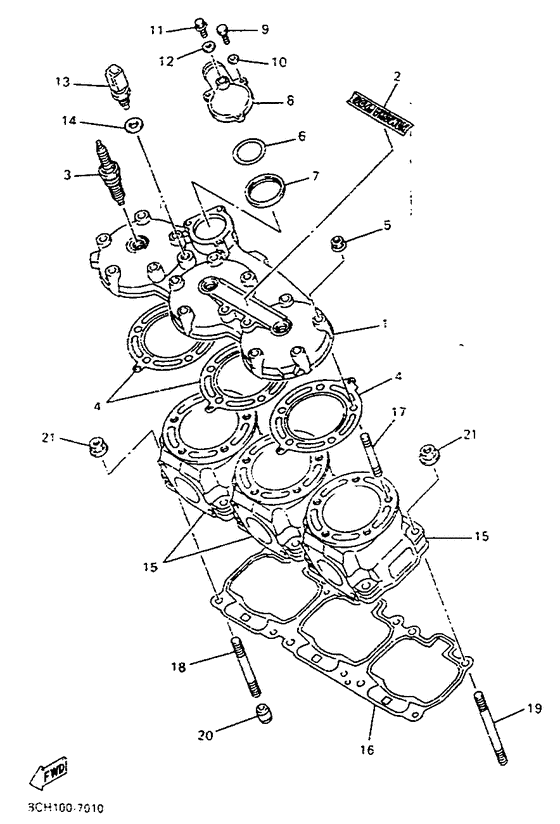

Cylinder head Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CH-11111-00-00
Head, Cylinder 1
|
8CH-11111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
8CH-11111-01-00
Head, Cylinder 1
|
8CH-11111-01-00 |
— | ||
|
02
|
02
8CH-1111K-00-00
Emblem
|
8CH-1111K-00-00 |
— | ||
|
03
|
03
947-02001-88-00 Br9Es Ngk Solid Top |
947-02001-88-00 |
US $8.42 |
||
| replacements | |||||
|
03
|
03
947-09001-88-00 Plug, Spark (Ngk Br9Es) |
947-09001-88-00 |
US $7.49 |
||
|
03
|
03
BR9-ES01P-C0-00 YA BR9ES NGK SPLUG SOLID |
BR9-ES01P-C0-00 |
US $25.64 |
||
|
04
|
04
8CH-11181-00-00 Gasket, Cylinder Head 1 |
8CH-11181-00-00 |
from US $69.76 |
||
| replacement | |||||
|
04
|
04
8CH-11181-01-00 Gasket, Cylinder Head 1 |
8CH-11181-01-00 |
from US $69.76 |
||
|
05
|
05
90179-08299-00 Nut |
90179-08299-00 |
from US $1.28 |
||
| replacement | |||||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
06
|
06
90201-345G2-00 Washer, Plate |
90201-345G2-00 |
from US $3.60 |
||
|
07
|
07
8A7-12412-01-00 Seal, Thermostat |
8A7-12412-01-00 |
from US $3.97 |
||
|
08
|
08
82M-12413-00-00 Cover, Thermostat |
82M-12413-00-00 |
from US $25.70 |
||
|
09
|
09
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
09
|
09
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
12
|
12
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
13
|
13
8CC-85790-00-00 Thermosensor Assy |
8CC-85790-00-00 |
from US $51.95 |
||
| replacement | |||||
|
13
|
13
8CC-85790-01-00 Thermosensor Assy |
8CC-85790-01-00 |
from US $51.95 |
||
|
14
|
14
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
15
|
15
8CH-11311-00-00 Cylinder 1 |
8CH-11311-00-00 |
from US $512.86 |
||
| replacement | |||||
|
15
|
15
8CH-11311-02-00 CYLINDER 1 |
8CH-11311-02-00 |
from US $512.86 |
||
|
16
|
16
8CH-11351-00-00 Gasket, Cylinder |
8CH-11351-00-00 |
from US $78.02 |
||
|
17
|
17
90116-08392-00 Bolt, Stud (5X4) |
90116-08392-00 |
from US $6.80 |
||
|
18
|
18
90116-08104-00 Bolt, Stud |
90116-08104-00 |
from US $8.19 |
||
|
19
|
19
90116-08302-00 Bolt, Stud |
90116-08302-00 |
from US $4.58 |
||
|
20
|
20
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
21
|
21
90179-08299-00 Nut(for mm600) |
90179-08299-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90179-08491-00 Nut(55X)(for mm600) |
90179-08491-00 |
from US $1.39 |
||
