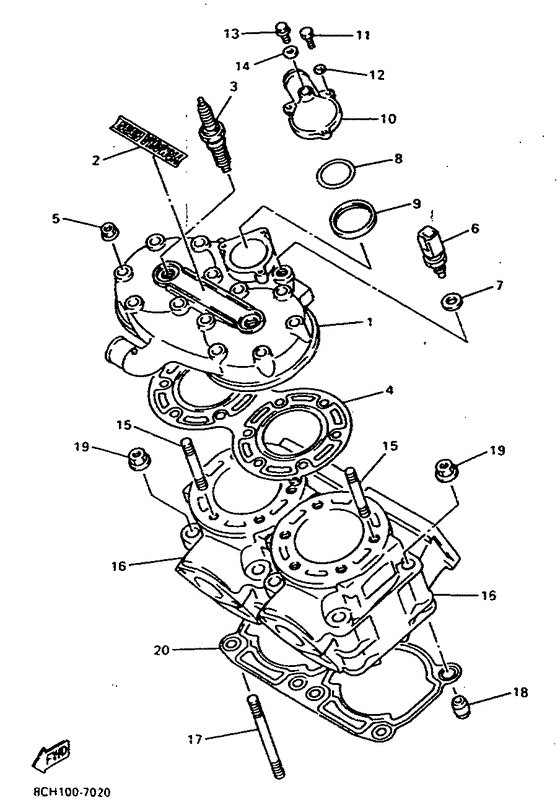

Cylinder head Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-11111-00-00 Head, Cylinder 1 |
8CR-11111-00-00 |
US $711.47 |
||
| replacement | |||||
|
01
|
01
999-99031-91-00 Cylinder Head 1 |
999-99031-91-00 |
US $711.47 |
||
|
02
|
02
8CR-1111K-00-00
Emblem
|
8CR-1111K-00-00 |
— | ||
|
03
|
03
947-02001-88-00 Br9Es Ngk Solid Top |
947-02001-88-00 |
US $8.42 |
||
| replacements | |||||
|
03
|
03
947-09001-88-00 Plug, Spark (Ngk Br9Es) |
947-09001-88-00 |
US $7.49 |
||
|
03
|
03
BR9-ES01P-C0-00 YA BR9ES NGK SPLUG SOLID |
BR9-ES01P-C0-00 |
US $25.64 |
||
|
04
|
04
8CR-11181-00-00 Gasket, Cylinder Head 1 |
8CR-11181-00-00 |
from US $69.77 |
||
|
05
|
05
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
06
|
06
8CC-85790-00-00 Thermosensor Assy |
8CC-85790-00-00 |
from US $51.95 |
||
| replacement | |||||
|
06
|
06
8CC-85790-01-00 Thermosensor Assy |
8CC-85790-01-00 |
from US $51.95 |
||
|
07
|
07
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
08
|
08
90201-345G2-00 Washer, Plate |
90201-345G2-00 |
from US $3.60 |
||
|
09
|
09
8A7-12412-01-00 Seal, Thermostat |
8A7-12412-01-00 |
from US $3.97 |
||
|
10
|
10
82M-12413-00-00 Cover, Thermostat |
82M-12413-00-00 |
from US $25.70 |
||
|
11
|
11
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
13
|
13
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
14
|
14
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
15
|
15
90116-08392-00 Bolt, Stud (5X4) |
90116-08392-00 |
from US $6.80 |
||
|
16
|
16
8CR-11311-00-00 Cylinder 1 |
8CR-11311-00-00 |
from US $822.94 |
||
|
17
|
17
90116-10574-00 Bolt, Stud |
90116-10574-00 |
from US $11.62 |
||
|
18
|
18
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
19
|
19
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
19
|
19
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
20
|
20
8CR-11351-00-00 Gasket, Cylinder(for mm700) |
8CR-11351-00-00 |
from US $45.24 |
||
