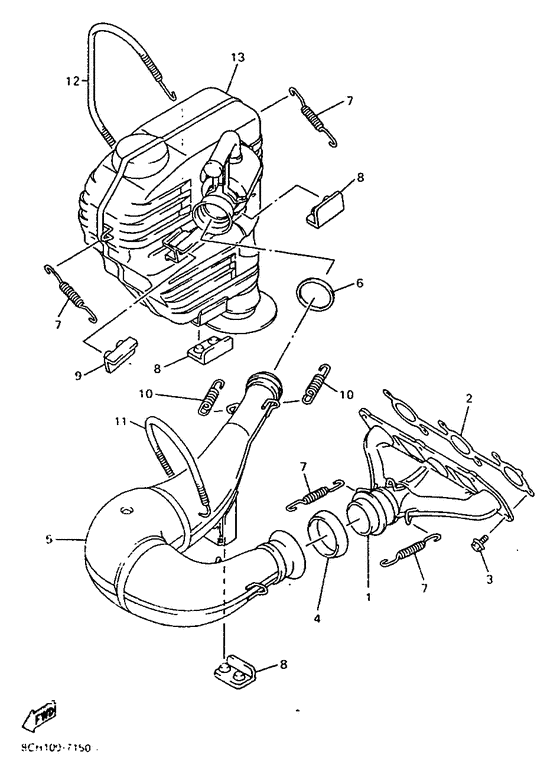

Exhaust Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CH-14610-00-00 Exhaust Pipe Assy 1 |
8CH-14610-00-00 |
from US $552.42 |
||
|
02
|
02
8CH-14613-01-00 Gasket, Exhaust Pipe |
8CH-14613-01-00 |
from US $57.16 |
||
|
03
|
03
95027-08020-00 Bolt, Flange |
95027-08020-00 |
from US $1.39 |
||
| replacement | |||||
|
03
|
03
90105-081A1-00 Bolt, Washer Based(3Jp) |
90105-081A1-00 |
from US $2.77 |
||
|
04
|
04
8CA-14714-00-00 Gasket, Muffler |
8CA-14714-00-00 |
from US $40.16 |
||
|
05
|
05
8CH-14620-00-00 Exhaust Pipe Assy 2 |
8CH-14620-00-00 |
US $531.79 |
||
| replacement | |||||
|
05
|
05
8CH-14620-01-00 Exhaust Pipe Assy 2 |
8CH-14620-01-00 |
US $525.91 |
||
|
06
|
06
8CH-14633-00-00 Ring |
8CH-14633-00-00 |
from US $9.02 |
||
|
07
|
07
90506-20272-00 Spring, Tension |
90506-20272-00 |
from US $7.07 |
||
|
08
|
08
83R-14728-01-00 Protector, Muffler 2 |
83R-14728-01-00 |
from US $12.62 |
||
|
09
|
09
8CR-14728-00-00
Protector, Muffler 2
|
8CR-14728-00-00 |
— | ||
|
10
|
10
90506-20093-00 Spring, Tension |
90506-20093-00 |
from US $2.69 |
||
|
11
|
11
90506-16497-00
Spring, Tension
|
90506-16497-00 |
— | ||
|
12
|
12
90506-16504-00
Spring, Tension
|
90506-16504-00 |
— | ||
|
13
|
13
8CH-14640-00-00
Second Silencer, Muffler
(for mm600) |
8CH-14640-00-00 |
— | ||
