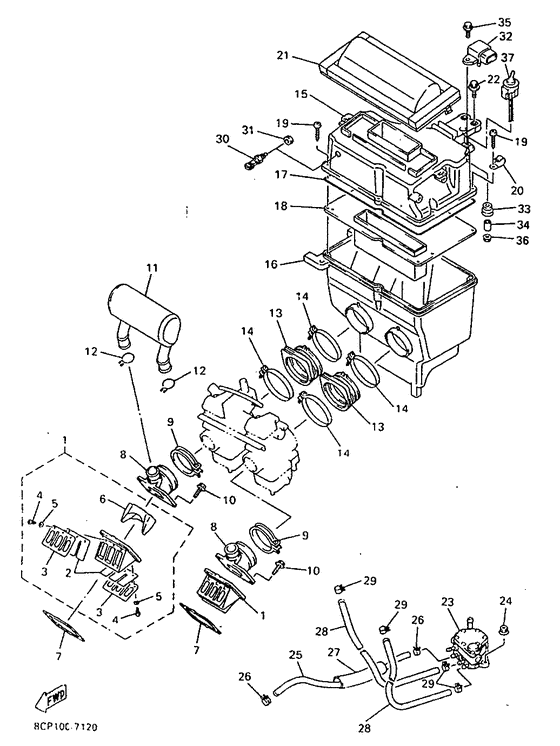

Intake Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DA-13610-00-00
Reed Valve Assy
|
4DA-13610-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4DA-13610-01-00
Reed Valve Assy
|
4DA-13610-01-00 |
— | ||
|
02
|
02
3SP-13613-00-00 Reed, Valve |
3SP-13613-00-00 |
from US $22.03 |
||
| replacement | |||||
|
02
|
02
3SP-13613-01-00 Reed, Valve |
3SP-13613-01-00 |
from US $27.19 |
||
|
03
|
03
4DA-13616-00-00 Stopper, Reed Valve |
4DA-13616-00-00 |
from US $7.79 |
||
| replacement | |||||
|
03
|
03
8DJ-13616-00-00 Stopper, Reed Valve |
8DJ-13616-00-00 |
from US $7.79 |
||
|
04
|
04
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
05
|
05
929-07031-00-00
Washer, Spring
|
929-07031-00-00 |
— | ||
| replacement | |||||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
4DA-13625-00-00 Spacer, Reed Valve |
4DA-13625-00-00 |
US $60.93 |
||
|
07
|
07
80L-13621-01-00 Gasket, Valve Seat |
80L-13621-01-00 |
from US $4.99 |
||
|
08
|
08
8CR-13555-00-00 Manifold, Intake |
8CR-13555-00-00 |
US $74.32 |
||
|
09
|
09
86M-13575-00-00 Band |
86M-13575-00-00 |
from US $5.81 |
||
|
10
|
10
95827-06020-00 Bolt, Flange |
95827-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
10
|
10
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
11
|
11
8CR-13581-00-00 Chamber, Air |
8CR-13581-00-00 |
from US $34.85 |
||
|
12
|
12
90467-24096-00 Clip(8V0) |
90467-24096-00 |
from US $1.84 |
||
|
13
|
13
8CR-14453-00-00 Joint, Air Cleaner 1 |
8CR-14453-00-00 |
US $25.12 |
||
|
14
|
14
90460-68230-00 Clamp, Hose (29L) |
90460-68230-00 |
from US $5.40 |
||
|
15
|
15
8CW-14431-00-00
Silencer, Intake 1
|
8CW-14431-00-00 |
— | ||
| replacement | |||||
|
15
|
15
8CR-14431-01-00
Silencer, Intake 1
|
8CR-14431-01-00 |
— | ||
|
16
|
16
8CR-14441-00-00 Silencer, Intake 2 |
8CR-14441-00-00 |
US $24.86 |
||
| replacement | |||||
|
16
|
16
8CR-14441-01-00 Silencer, Intake 2 |
8CR-14441-01-00 |
US $24.86 |
||
|
17
|
17
8CR-14452-00-00 Seal |
8CR-14452-00-00 |
from US $8.93 |
||
| replacement | |||||
|
17
|
17
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $10.54 |
||
|
18
|
18
8CR-14477-00-00 Plate |
8CR-14477-00-00 |
from US $16.67 |
||
|
19
|
19
90167-05043-00 Screw, Tapping |
90167-05043-00 |
from US $1.42 |
||
|
20
|
20
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
21
|
21
8CR-14450-00-00 Element Assy, Air Cleaner |
8CR-14450-00-00 |
from US $32.02 |
||
|
22
|
22
90119-06182-00 Bolt, With Washer |
90119-06182-00 |
from US $1.84 |
||
| replacement | |||||
|
22
|
22
90119-06163-00 Bolt, With Washer |
90119-06163-00 |
from US $1.84 |
||
|
23
|
23
8CR-24410-01-00 Fuel Pump Assy |
8CR-24410-01-00 |
from US $92.15 |
||
|
24
|
24
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
25
|
25
904-45101-41-00
Hose (L320)
|
904-45101-41-00 |
— | ||
| replacement | |||||
|
25
|
25
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $5.06 |
||
|
26
|
26
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
|
27
|
27
90445-226J7-00 Hose (L150) |
90445-226J7-00 |
from US $3.85 |
||
|
28
|
28
91A20-05024-00 Tube, Flexible Vinyl (91A-20050 |
91A20-05024-00 |
from US $5.95 |
||
| replacement | |||||
|
28
|
28
91A20-05039-00 Tube, Flexible Vinyl |
91A20-05039-00 |
from US $3.11 |
||
|
29
|
29
90467-09026-00 Clip |
90467-09026-00 |
from US $1.12 |
||
|
30
|
30
8CC-83591-00-00 Thermo Unit |
8CC-83591-00-00 |
US $103.82 |
||
|
31
|
31
90179-12628-00
Nut
|
90179-12628-00 |
— | ||
|
32
|
32
8CC-82380-00-00 Sensor, Pressure |
8CC-82380-00-00 |
US $398.18 |
||
|
33
|
33
90480-16113-00
Grommet
|
90480-16113-00 |
— | ||
|
34
|
34
90387-061K9-00 Collar |
90387-061K9-00 |
from US $1.13 |
||
|
35
|
35
95827-06025-00 Bolt, Flange |
95827-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
35
|
35
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
35
|
35
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
36
|
36
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
37
|
37
8CC-8399Y-00-00 Fuel Switch Comp(for mm700) |
8CC-8399Y-00-00 |
from US $107.99 |
||
