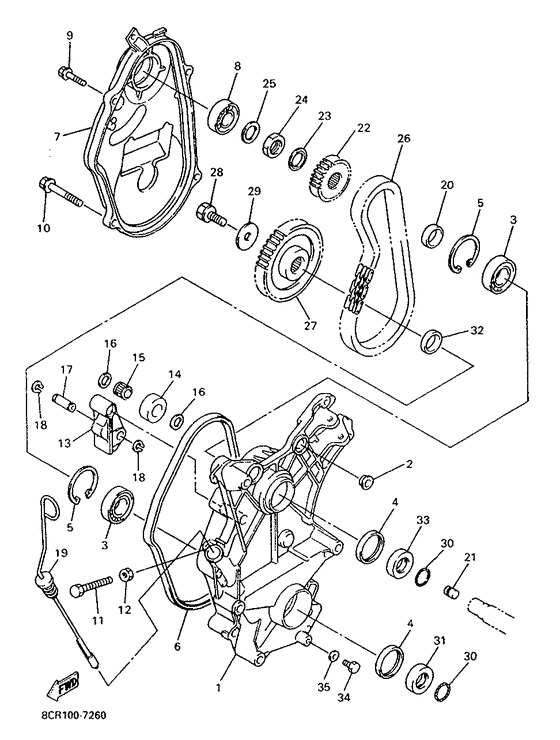

Track drive 2 Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-47541-01-00 Housing, Chain |
8CR-47541-01-00 |
from US $418.75 |
||
|
02
|
02
90179-10679-00 Nut |
90179-10679-00 |
from US $5.53 |
||
|
03
|
03
93306-20570-00 Bearing (80N) |
93306-20570-00 |
from US $23.66 |
||
|
04
|
04
93102-35318-00 Oil Seal |
93102-35318-00 |
from US $5.53 |
||
|
05
|
05
99009-52500-00 Circlip |
99009-52500-00 |
from US $5.40 |
||
|
06
|
06
8CR-47558-00-00 Ring, Housing |
8CR-47558-00-00 |
from US $14.69 |
||
| replacements | |||||
|
06
|
06
8CR-47558-01-00 Ring, Housing |
8CR-47558-01-00 |
US $23.16 |
||
|
06
|
06
8CR-47558-02-00 Ring, Housing/Gasket |
8CR-47558-02-00 |
from US $16.65 |
||
|
07
|
07
8CR-47543-01-00
Cap, Housing
|
8CR-47543-01-00 |
— | ||
|
08
|
08
93306-20402-00 Bearing |
93306-20402-00 |
from US $22.62 |
||
| replacements | |||||
|
08
|
08
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
08
|
08
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
|
09
|
09
95827-08030-00 Bolt, Flange |
95827-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
09
|
09
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.18 |
||
|
10
|
10
95827-10060-00 Bolt, Flange |
95827-10060-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.72 |
||
|
11
|
11
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
12
|
12
95307-10600-00 Nut |
95307-10600-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
95337-10600-00 Nut |
95337-10600-00 |
from US $2.27 |
||
|
13
|
13
8CR-47613-00-00 Holder |
8CR-47613-00-00 |
from US $35.42 |
||
|
14
|
14
8CR-47612-00-00
Wheel
|
8CR-47612-00-00 |
— | ||
|
15
|
15
933-15212-27-00 Bearing |
933-15212-27-00 |
from US $15.26 |
||
|
16
|
16
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
17
|
17
90249-12227-00 Pin |
90249-12227-00 |
from US $13.90 |
||
|
18
|
18
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
19
|
19
8CR-47546-00-00
Level, Oil
|
8CR-47546-00-00 |
— | ||
|
20
|
20
90387-2508D-00 Collar |
90387-2508D-00 |
from US $6.09 |
||
|
21
|
21
82M-17699-00-00 Plug, Oil |
82M-17699-00-00 |
from US $3.83 |
||
|
22
|
22
89J-17682-90-00 Sprocet, Chain Drive (19T)Ur std for mm600 |
89J-17682-90-00 |
from US $39.19 |
||
| replacement | |||||
|
22
|
22
89J-17682-91-00 Sprocket, Chain Drive (19T)Ur std for mm600 |
89J-17682-91-00 |
from US $39.19 |
||
|
22
|
22
89J-17682-00-00 Sprocket, Chain Drive (20T)Ur ap |
89J-17682-00-00 |
US $39.96 |
||
|
22
|
22
89J-17682-10-00 Sprocket, Chain Drive (21T)Ur ap |
89J-17682-10-00 |
US $44.07 |
||
|
22
|
22
89J-17682-20-00 Sprocket, Chain Drive (22T)Ur std for mm700 |
89J-17682-20-00 |
from US $44.07 |
||
|
22
|
22
89J-17682-30-00 Sprocket, Chain Drive (23T)Ur ap |
89J-17682-30-00 |
from US $44.07 |
||
|
23
|
23
90208-22001-00 Washer, Conical Spring |
90208-22001-00 |
from US $4.86 |
||
|
24
|
24
90170-22094-00 Nut |
90170-22094-00 |
from US $7.94 |
||
|
25
|
25
90201-207J5-00 Washer, Plate |
90201-207J5-00 |
from US $2.27 |
||
|
26
|
26
948-60020-68-00 Chain (68L)Ur std for mm600 |
948-60020-68-00 |
US $138.17 |
||
|
26
|
26
948-60020-70-00 Chain (70L)Ur std for mm700 |
948-60020-70-00 |
from US $111.15 |
||
|
27
|
27
89J-47587-00-00 Sprocket, Chain Driven (40T)Ur std for mm700 |
89J-47587-00-00 |
US $146.45 |
||
|
27
|
27
89J-47587-90-00 Sprocket, Chain Driven (39T)Ur std for mm600 |
89J-47587-90-00 |
from US $61.99 |
||
|
28
|
28
90105-10670-00 Bolt, Flange |
90105-10670-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
29
|
29
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
30
|
30
93210-25071-00 O-Ring |
93210-25071-00 |
from US $2.08 |
||
|
31
|
31
90387-2508C-00 Collar |
90387-2508C-00 |
from US $14.70 |
||
|
32
|
32
90387-2508B-00 Collar |
90387-2508B-00 |
from US $8.38 |
||
|
33
|
33
90387-2511J-00 Collar |
90387-2511J-00 |
from US $12.34 |
||
|
34
|
34
97007-08014-00 Bolt(8Bc) |
97007-08014-00 |
from US $3.12 |
||
|
35
|
35
90210-08017-00 Washer, Seal |
90210-08017-00 |
from US $2.08 |
||
