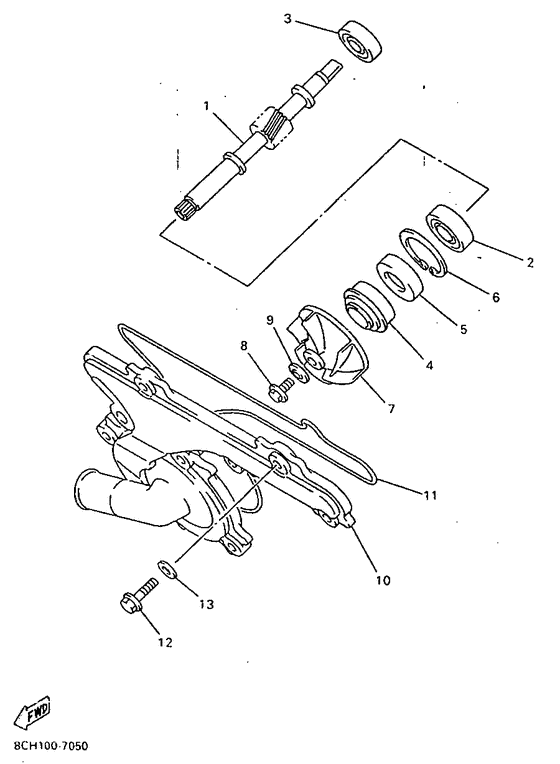

Water pump Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CH-12459-00-00 Gear, Impeller Shaft |
8CH-12459-00-00 |
from US $143.42 |
||
| replacement | |||||
|
01
|
01
8CH-12459-01-00
Gear, Impeller Shaft
|
8CH-12459-01-00 |
— | ||
|
02
|
02
93306-00105-00 Bearing |
93306-00105-00 |
from US $9.44 |
||
|
03
|
03
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.46 |
||
|
04
|
04
11H-12438-00-00
Seal, Mechanical
|
11H-12438-00-00 |
— | ||
| replacement | |||||
|
04
|
04
11H-12438-10-00 Seal, Mechanical |
11H-12438-10-00 |
from US $22.90 |
||
|
05
|
05
93102-12461-00 Oil Seal |
93102-12461-00 |
from US $7.65 |
||
|
06
|
06
99009-28500-00 Circlip |
99009-28500-00 |
from US $1.98 |
||
| replacement | |||||
|
06
|
06
93420-28055-00 Circlip |
93420-28055-00 |
from US $1.70 |
||
|
07
|
07
8CH-12451-00-00 Impeller, Water Pump |
8CH-12451-00-00 |
US $119.87 |
||
| replacement | |||||
|
07
|
07
8CH-12451-02-00 Impeller, Water Pump |
8CH-12451-02-00 |
US $113.56 |
||
|
08
|
08
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
08
|
08
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
09
|
09
90210-06018-00
Washer, Seal
|
90210-06018-00 |
— | ||
| replacement | |||||
|
09
|
09
90210-06001-00
Washer, Seal
|
90210-06001-00 |
— | ||
|
10
|
10
8CH-W1241-00-00 Cover, Housing |
8CH-W1241-00-00 |
from US $122.40 |
||
| replacement | |||||
|
10
|
10
8CH-12422-01-00 Cover, Housing |
8CH-12422-01-00 |
from US $122.40 |
||
|
11
|
11
8CH-12439-00-00 O-Ring |
8CH-12439-00-00 |
from US $37.58 |
||
|
12
|
12
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
12
|
12
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
13
|
13
90430-06166-00 Gasket(for mm600) |
90430-06166-00 |
from US $1.39 |
||
