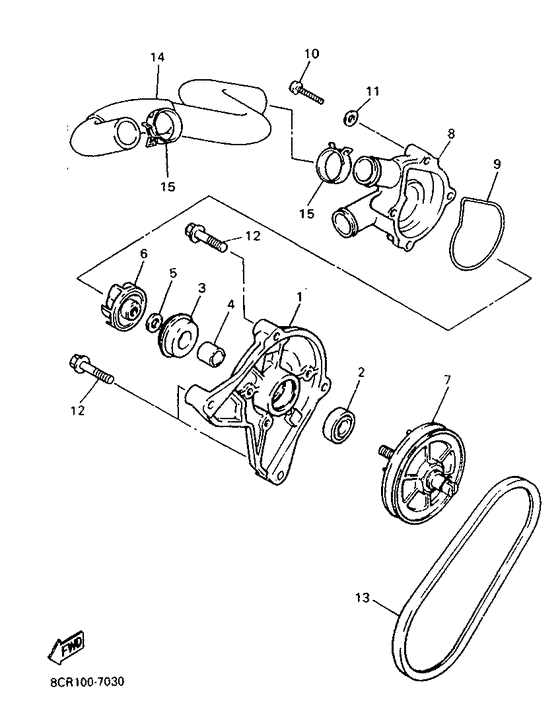

Water pump Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-12421-00-00 Housing, Water Pump |
8CR-12421-00-00 |
US $90.81 |
||
| replacement | |||||
|
01
|
01
8CR-12421-01-00 Housing, Water Pump |
8CR-12421-01-00 |
US $90.81 |
||
|
02
|
02
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
03
|
03
82M-12438-00-00
Seal, Mechanical
|
82M-12438-00-00 |
— | ||
|
04
|
04
82M-12437-00-00 Stopper |
82M-12437-00-00 |
US $6.10 |
||
|
05
|
05
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.71 |
||
|
06
|
06
82M-12451-00-00 Impeller, Water Pump |
82M-12451-00-00 |
US $71.51 |
||
|
07
|
07
8CR-12450-00-00 Impeller Shaft Assy |
8CR-12450-00-00 |
US $108.41 |
||
|
08
|
08
8CR-12422-00-00 Cover, Housing |
8CR-12422-00-00 |
from US $44.32 |
||
| replacement | |||||
|
08
|
08
8CR-12422-01-00 Cover, Housing |
8CR-12422-01-00 |
from US $44.32 |
||
|
09
|
09
8CR-12439-00-00 O-Ring |
8CR-12439-00-00 |
from US $5.65 |
||
|
10
|
10
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
13
|
13
82M-12444-00-00 Belt 1 |
82M-12444-00-00 |
from US $16.78 |
||
|
14
|
14
8CR-12481-00-00
Pipe 1
|
8CR-12481-00-00 |
— | ||
|
15
|
15
90467-28046-00 Clip (8M6)(for mm700) |
90467-28046-00 |
from US $3.54 |
||
