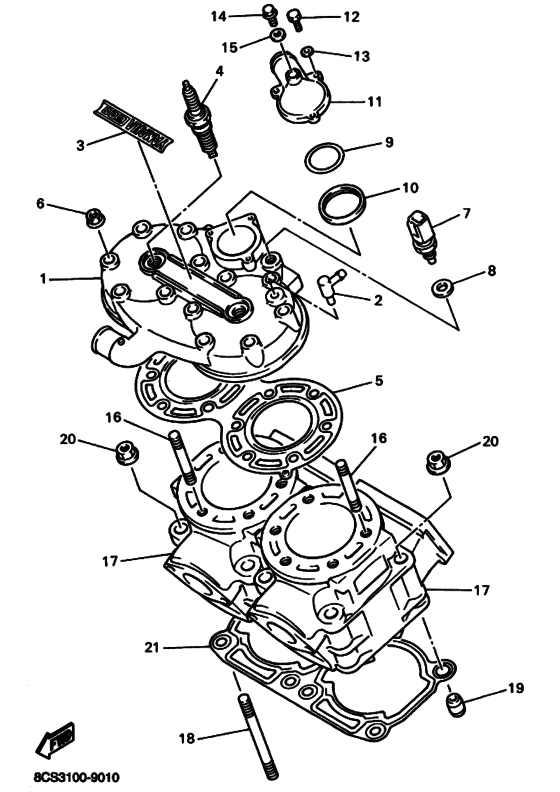

Cylinder head Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS3
- Engine Capacity
- 593
- Year
- 1999
- Sales region
- Japan (030)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CR-11111-10-00 Head, Cylinder 1 |
8CR-11111-10-00 |
US $547.88 |
||
|
2
|
2
8CH-12469-00-00 Joint 1 |
8CH-12469-00-00 |
from US $32.73 |
||
|
3
|
3
8CR-1111K-00-00
Emblem
|
8CR-1111K-00-00 |
— | ||
|
4
|
4
94702-00383-00 Plug, Spark (Ngk Br9Ecs)プラグ，スパーク; |
94702-00383-00 |
US $9.72 |
||
| replacement | |||||
|
4
|
4
BR9-ECS0P-C0-00 SKI HANDLE/ROPEプラグ，スパーク; |
BR9-ECS0P-C0-00 |
US $9.72 |
||
|
5
|
5
8CR-11181-00-00 Gasket, Cylinder Head 1 |
8CR-11181-00-00 |
from US $69.77 |
||
|
6
|
6
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
7
|
7
8CC-85790-00-00 Thermosensor Assyサーモセンサアセンブリ; |
8CC-85790-00-00 |
from US $51.95 |
||
| replacement | |||||
|
7
|
7
8CC-85790-01-00 Thermosensor Assyサーモセンサアセンブリ; |
8CC-85790-01-00 |
from US $51.95 |
||
|
8
|
8
90201-12790-00 Washer, Plateワツシヤ，プレート; |
90201-12790-00 |
from US $1.28 |
||
|
9
|
9
90201-345G2-00 Washer, Plateワツシヤ，プレート; |
90201-345G2-00 |
from US $3.60 |
||
|
10
|
10
8A7-12412-01-00 Seal, Thermostatシール，サーモスタツト; |
8A7-12412-01-00 |
from US $3.97 |
||
|
11
|
11
82M-12413-00-00 Cover, Thermostatカバー，サーモスタツト; |
82M-12413-00-00 |
from US $25.70 |
||
|
12
|
12
970-07060-20-00
Bolt
ボルト; |
970-07060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Boltボルト; |
970-17060-20-00 |
from US $1.16 |
||
|
13
|
13
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
14
|
14
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
14
|
14
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
15
|
15
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
16
|
16
90116-08392-00 Bolt, Stud (5X4) |
90116-08392-00 |
from US $6.80 |
||
|
17
|
17
8CR-11311-00-00 Cylinder 1 |
8CR-11311-00-00 |
from US $822.94 |
||
|
18
|
18
90116-10574-00 Bolt, Studボルト，スタツド; |
90116-10574-00 |
from US $11.62 |
||
|
19
|
19
99530-14016-00 Pin, Dowelピン，ダウエル; |
99530-14016-00 |
from US $1.66 |
||
|
20
|
20
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
21
|
21
8CR-11351-00-00 Gasket, Cylinder |
8CR-11351-00-00 |
from US $45.24 |
||
