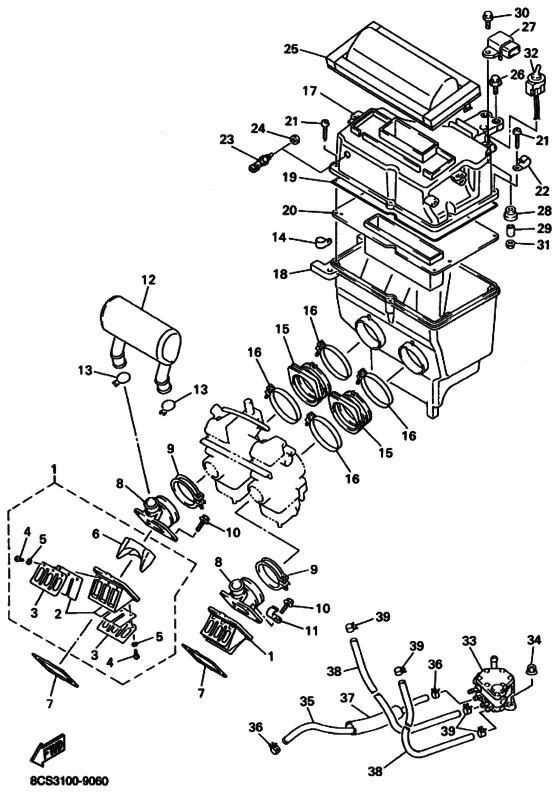

Intake Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS3
- Engine Capacity
- 593
- Year
- 1999
- Sales region
- Japan (030)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DA-13610-00-00
Reed Valve Assy
リードバルブアセンブリ; （※１） |
4DA-13610-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4DA-13610-01-00
Reed Valve Assy
リードバルブアセンブリ; （※１） |
4DA-13610-01-00 |
— | ||
|
2
|
2
3SP-13613-00-00 Reed, Valve・リード，バルブ; |
3SP-13613-00-00 |
from US $22.03 |
||
| replacement | |||||
|
2
|
2
3SP-13613-01-00 Reed, Valve・リード，バルブ; |
3SP-13613-01-00 |
from US $27.19 |
||
|
3
|
3
4DA-13616-00-00 Stopper, Reed Valve・ストツパ，リードバルブ; |
4DA-13616-00-00 |
from US $7.79 |
||
| replacement | |||||
|
3
|
3
8DJ-13616-00-00 Stopper, Reed Valve・ストツパ，リードバルブ; |
8DJ-13616-00-00 |
from US $7.79 |
||
|
4
|
4
98507-03008-00 Screw, Pan Head・スクリユ，パンヘツド; |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
4
|
4
98517-03008-00 Screw, Pan Head・スクリユ，パンヘツド; |
98517-03008-00 |
from US $2.27 |
||
|
5
|
5
929-07031-00-00
Washer, Spring
・ワツシヤ; |
929-07031-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-03100-00 Washer, Spring・ワツシヤ; |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
4DA-13625-00-00 Spacer, Reed Valve・スペーサ，リードバルブ; |
4DA-13625-00-00 |
US $60.93 |
||
|
7
|
7
80L-13621-01-00 Gasket, Valve Seatガスケツト，バルブシート; |
80L-13621-01-00 |
from US $4.99 |
||
|
8
|
8
8CR-13555-00-00 Manifold, Intakeマニホールド，インテーク; （※２） |
8CR-13555-00-00 |
US $74.32 |
||
|
9
|
9
86M-13575-00-00 Band |
86M-13575-00-00 |
from US $5.81 |
||
|
10
|
10
95827-06020-00 Bolt, Flange |
95827-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
10
|
10
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
11
|
11
90462-08246-00 Clamp |
90462-08246-00 |
from US $11.75 |
||
|
12
|
12
8CR-13581-00-00 Chamber, Airチヤンバー，エア; |
8CR-13581-00-00 |
from US $34.85 |
||
|
13
|
13
90467-24096-00 Clip(8V0) |
90467-24096-00 |
from US $1.84 |
||
|
14
|
14
90461-06080-00 Clamp |
90461-06080-00 |
from US $2.41 |
||
| replacement | |||||
|
14
|
14
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
15
|
15
8CR-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナ １; |
8CR-14453-00-00 |
US $25.12 |
||
|
16
|
16
90460-68230-00 Clamp, Hose (29L)クランプ，ホース; |
90460-68230-00 |
from US $5.40 |
||
|
17
|
17
8CW-14431-01-00 Silencer, Intake 1サイレンサ，インテーク １; |
8CW-14431-01-00 |
from US $33.46 |
||
|
18
|
18
8CR-14441-01-00 Silencer, Intake 2サイレンサ，インテーク ２; |
8CR-14441-01-00 |
US $24.86 |
||
|
19
|
19
8CR-14452-00-00 Sealシール; |
8CR-14452-00-00 |
from US $8.93 |
||
| replacement | |||||
|
19
|
19
51Y-14462-00-00 Sealシール; |
51Y-14462-00-00 |
from US $10.54 |
||
|
20
|
20
8CR-14477-00-00 Plateプレート; |
8CR-14477-00-00 |
from US $16.67 |
||
|
21
|
21
90167-05043-00 Screw, Tapping |
90167-05043-00 |
from US $1.42 |
||
|
22
|
22
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
23
|
23
8CC-83591-00-00 Thermo Unitサーモユニツト; |
8CC-83591-00-00 |
US $103.82 |
||
|
24
|
24
90179-12628-00
Nut
ナツト; |
90179-12628-00 |
— | ||
|
25
|
25
8CR-14450-00-00 Element Assy, Air Cleanerエレメントアセンブリ，エアクリーナ; |
8CR-14450-00-00 |
from US $32.02 |
||
|
26
|
26
90119-06182-00 Bolt, With Washer |
90119-06182-00 |
from US $1.84 |
||
| replacement | |||||
|
26
|
26
90119-06163-00 Bolt, With Washer |
90119-06163-00 |
from US $1.84 |
||
|
27
|
27
8CC-82380-00-00 Sensor, Pressureセンサー，プレツシヤー; |
8CC-82380-00-00 |
US $398.18 |
||
|
28
|
28
90480-16113-00
Grommet
|
90480-16113-00 |
— | ||
|
29
|
29
90387-061K9-00 Collarカラー; |
90387-061K9-00 |
from US $1.13 |
||
|
30
|
30
95827-06025-00 Bolt, Flangeボルト，フランジ; |
95827-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
30
|
30
958-17060-25-00 Bolt, Flangeボルト，フランジ; |
958-17060-25-00 |
from US $1.18 |
||
|
30
|
30
95822-06025-00 Bolt, Flangeボルト，フランジ; |
95822-06025-00 |
from US $0.97 |
||
|
31
|
31
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
32
|
32
8CC-8399Y-00-00 Fuel Switch Compフユーエルスイツチコンプリート; |
8CC-8399Y-00-00 |
from US $107.99 |
||
|
33
|
33
8CR-24410-01-00 Fuel Pump Assy |
8CR-24410-01-00 |
from US $92.15 |
||
|
34
|
34
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
35
|
35
90445-11735-00 Hose (L400)ホース; |
90445-11735-00 |
from US $15.44 |
||
| replacement | |||||
|
35
|
35
90445-116K9-00 Hose (L400)Hose (l400) ホース; |
90445-116K9-00 |
from US $16.37 |
||
|
36
|
36
90467-11032-00 Clip |
90467-11032-00 |
from US $1.28 |
||
| replacement | |||||
|
36
|
36
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.52 |
||
|
37
|
37
90445-226J7-00 Hose (L150)ホース; |
90445-226J7-00 |
from US $3.85 |
||
|
38
|
38
90445-093K1-00 Hose (L420)ホース; |
90445-093K1-00 |
from US $6.52 |
||
| replacement | |||||
|
38
|
38
904-45092-K1-00 Hose (L420)ホース; |
904-45092-K1-00 |
from US $5.40 |
||
|
39
|
39
90467-09026-00 Clip |
90467-09026-00 |
from US $1.12 |
||
