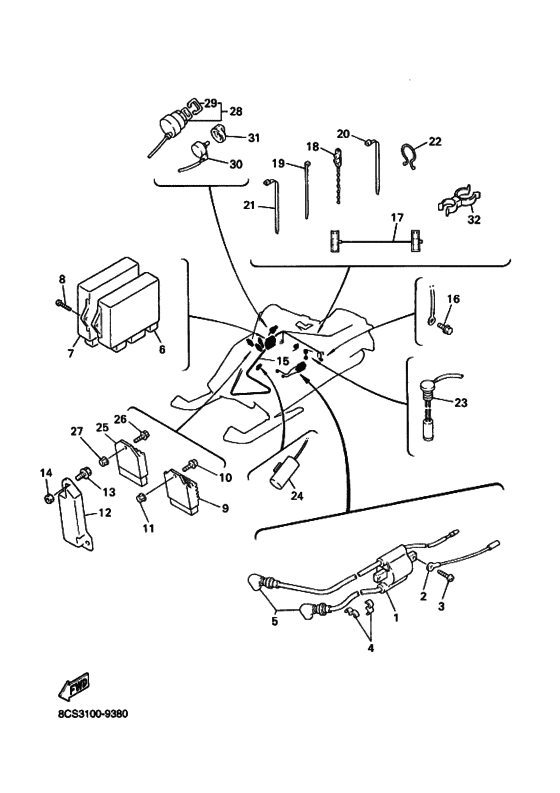

Electrical 1 Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CS3
- Engine Capacity
- 593
- Year
- 1999
- Sales region
- Europe (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AB-82310-00-00 Ignition Coil Assy |
8AB-82310-00-00 |
from US $82.36 |
||
| replacement | |||||
|
1
|
1
8AB-82310-09-00 Ignition Coil Assy |
8AB-82310-09-00 |
from US $82.36 |
||
|
2
|
2
8V7-82318-00-00
Wire, Sub-Lead
|
8V7-82318-00-00 |
— | ||
| replacements | |||||
|
2
|
2
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
2
|
2
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
|
3
|
3
97780-60125-00 Screw,tapping |
97780-60125-00 |
US $1.98 |
||
| replacement | |||||
|
3
|
3
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
4
|
4
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
5
|
5
81E-82370-30-00 Plug Cap Assy |
81E-82370-30-00 |
from US $32.74 |
||
| replacement | |||||
|
5
|
5
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
6
|
6
8CR-85540-10-00
C.d.i. Unit Assembly
|
8CR-85540-10-00 |
— | ||
|
7
|
7
8CS-85940-00-00 Electronic Control Unit Assembl |
8CS-85940-00-00 |
US $1,191.92 |
||
|
8
|
8
97707-60135-00 Screw, Tapping |
97707-60135-00 |
US $0.63 |
||
|
9
|
9
89A-81960-00-00 Rectifier & Regulator Assy |
89A-81960-00-00 |
from US $111.98 |
||
|
10
|
10
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
10
|
10
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
11
|
11
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
12
|
12
1JK-81960-A1-00 Rectifier & Regulator Assy |
1JK-81960-A1-00 |
from US $158.88 |
||
|
13
|
13
97007-06014-00 Bolt |
97007-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
14
|
14
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
15
|
15
8CS-82590-10-00
Wire Harness Assembly
|
8CS-82590-10-00 |
— | ||
|
16
|
16
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
16
|
16
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
17
|
17
8CR-8471G-00-00 Wire, Lead |
8CR-8471G-00-00 |
from US $7.34 |
||
|
18
|
18
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
19
|
19
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
20
|
20
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
20
|
20
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
21
|
21
904-64130-77-00
Clamp
|
904-64130-77-00 |
— | ||
| replacement | |||||
|
21
|
21
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
22
|
22
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
23
|
23
8CR-85720-00-00 Oil Level Gauge Assy |
8CR-85720-00-00 |
from US $44.80 |
||
| replacement | |||||
|
23
|
23
8CR-85720-02-00 Oil Level Gauge Assy |
8CR-85720-02-00 |
from US $53.88 |
||
|
24
|
24
1NL-81965-01-00 Condenser, Smoothing |
1NL-81965-01-00 |
from US $121.72 |
||
|
25
|
25
8AB-81910-00-00 Voltage Regulator Assy |
8AB-81910-00-00 |
US $120.44 |
||
|
26
|
26
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
26
|
26
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
27
|
27
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
28
|
28
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
28
|
28
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
29
|
29
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
30
|
30
8CR-87283-00-00
Resistor, Variable
|
8CR-87283-00-00 |
— | ||
|
31
|
31
8AB-87284-00-00 Knob, Variable Resistor |
8AB-87284-00-00 |
from US $8.23 |
||
|
32
|
32
90464-21256-00 Clamp |
90464-21256-00 |
from US $3.54 |
||
