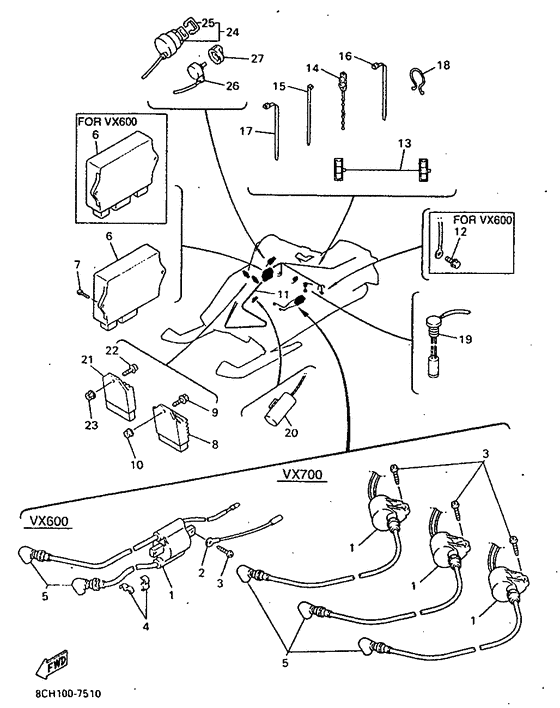

Electrical 1 Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CV1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8AB-82310-00-00 Ignition Coil AssyUr for vx600 |
8AB-82310-00-00 |
from US $82.36 |
||
| replacement | |||||
|
01
|
01
8AB-82310-09-00 Ignition Coil AssyUr for vx600 |
8AB-82310-09-00 |
from US $82.36 |
||
|
01
|
01
8CH-82310-00-00 Ignition Coil AssyUr for vx700 |
8CH-82310-00-00 |
US $106.43 |
||
| replacement | |||||
|
01
|
01
8DG-82310-00-00 Ignition Coil AssyUr for vx700 |
8DG-82310-00-00 |
US $101.79 |
||
|
02
|
02
8V7-82318-00-00
Wire, Sub-Lead
Ur for vx600 |
8V7-82318-00-00 |
— | ||
| replacements | |||||
|
02
|
02
85L-82318-01-00
Wire Sub Lead
Ur for vx600 |
85L-82318-01-00 |
— | ||
|
02
|
02
87D-82318-00-00
Wire, Sub-Lead
Ur for vx600 |
87D-82318-00-00 |
— | ||
|
03
|
03
97780-60525-00 Screw,tappingUr for vx700 |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
03
|
03
97780-60625-00 Screw, Tapping(65J)Ur for vx700 |
97780-60625-00 |
from US $2.22 |
||
|
04
|
04
861-82361-00-00 Clamp, CordUr for vx600 |
861-82361-00-00 |
from US $1.84 |
||
|
05
|
05
81E-82370-20-00 Plug Cap AssemblyUr for vx700 |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
05
|
05
8DG-82370-00-00 Plug Cap AssyUr for vx700 |
8DG-82370-00-00 |
from US $28.34 |
||
|
06
|
06
8CH-85540-00-00
C.d.i. Unit Assembly
Ur for vx700 |
8CH-85540-00-00 |
— | ||
|
06
|
06
8CR-85540-00-00
C.d.i. Unit Assy
Ur for vx600 |
8CR-85540-00-00 |
— | ||
| replacements | |||||
|
06
|
06
8CR-85540-10-00
C.d.i. Unit Assembly
Ur for vx600 |
8CR-85540-10-00 |
— | ||
|
06
|
06
8CR-85540-01-00
Cdi unit assy
Ur for vx600 |
8CR-85540-01-00 |
— | ||
|
07
|
07
97780-60525-00 Screw,tappingUr for vx600 |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
07
|
07
97780-60625-00 Screw, Tapping(65J)Ur for vx600 |
97780-60625-00 |
from US $2.22 |
||
|
08
|
08
89A-81960-00-00 Rectifier & Regulator Assy |
89A-81960-00-00 |
from US $111.98 |
||
|
09
|
09
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
10
|
10
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
11
|
11
8CH-82590-00-00
Wire Harness Assy
Ur for vx700 |
8CH-82590-00-00 |
— | ||
|
11
|
11
8CX-82590-00-00 Wire Harness AssyUr for vx600 |
8CX-82590-00-00 |
from US $232.35 |
||
|
12
|
12
958-17060-16-00 Bolt, FlangeUr for vx600 |
958-17060-16-00 |
from US $1.18 |
||
|
13
|
13
8CR-8471G-00-00 Wire, Lead |
8CR-8471G-00-00 |
from US $7.34 |
||
|
14
|
14
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
15
|
15
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
16
|
16
904-64130-73-00
Clamp
Ur for vx700 |
904-64130-73-00 |
— | ||
| replacement | |||||
|
16
|
16
904-64151-95-00 ClampUr for vx700 |
904-64151-95-00 |
from US $1.39 |
||
|
17
|
17
904-64130-73-00
Clamp
Ur for vx700 |
904-64130-73-00 |
— | ||
| replacement | |||||
|
17
|
17
904-64151-95-00 ClampUr for vx700 |
904-64151-95-00 |
from US $1.39 |
||
|
18
|
18
90464-23041-00 Clamp (4N0)Ur for vx600 |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90464-25267-00 ClampUr for vx600 |
90464-25267-00 |
from US $1.70 |
||
|
19
|
19
3E1-85720-12-00 Oil Level Gauge Assy |
3E1-85720-12-00 |
from US $40.66 |
||
| replacement | |||||
|
19
|
19
3E1-85720-15-00 Oil Level Gauge Assy |
3E1-85720-15-00 |
from US $48.22 |
||
|
20
|
20
1NL-81965-01-00 Condenser, Smoothing |
1NL-81965-01-00 |
from US $121.72 |
||
|
21
|
21
8AB-81910-00-00 Voltage Regulator Assy |
8AB-81910-00-00 |
US $120.44 |
||
|
22
|
22
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
23
|
23
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
24
|
24
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
24
|
24
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
25
|
25
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
26
|
26
8CR-87283-00-00
Resistor, Variable
|
8CR-87283-00-00 |
— | ||
|
27
|
27
8AB-87284-00-00 Knob, Variable Resistor |
8AB-87284-00-00 |
from US $8.23 |
||
