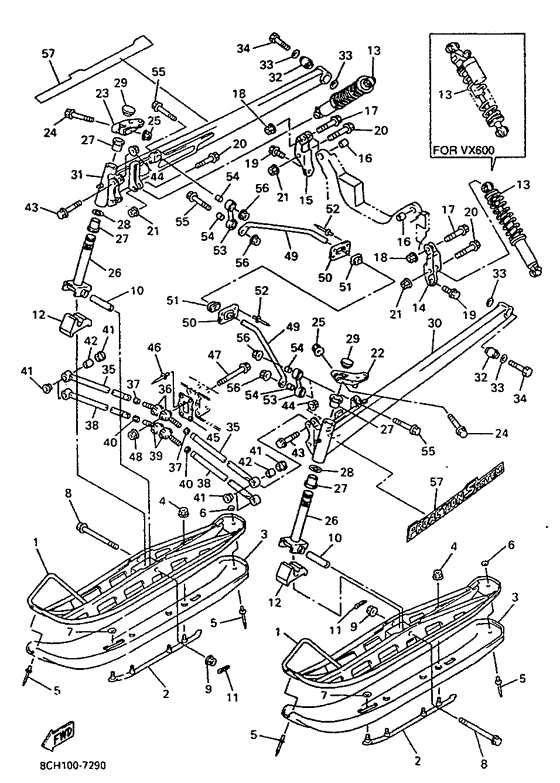

Ski Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CV1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-23710-00-00 Ski Comp. 1 |
8CR-23710-00-00 |
US $206.51 |
||
| replacement | |||||
|
01
|
01
8DJ-23710-00-00 Ski Comp. 1 |
8DJ-23710-00-00 |
US $206.51 |
||
|
02
|
02
8CV-23731-00-00 Runner 1 |
8CV-23731-00-00 |
US $106.42 |
||
|
03
|
03
8CV-23732-00-00
Runner 2
|
8CV-23732-00-00 |
— | ||
| replacement | |||||
|
03
|
03
8CV-23732-11-RD Sks Ski Skin Rd |
8CV-23732-11-RD |
US $68.17 |
||
|
04
|
04
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
04
|
04
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
05
|
05
90267-48184-00 Rivet, Blind |
90267-48184-00 |
from US $3.40 |
||
|
06
|
06
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
06
|
06
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
06
|
06
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
07
|
07
90201-08020-00 Washer, Plate |
90201-08020-00 |
from US $2.55 |
||
|
08
|
08
90105-10438-00 Bolt, Flange |
90105-10438-00 |
from US $10.26 |
||
|
09
|
09
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
09
|
09
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
10
|
10
90387-1007F-00 Collar |
90387-1007F-00 |
from US $7.23 |
||
| replacement | |||||
|
10
|
10
90387-1012H-00 Collar |
90387-1012H-00 |
from US $14.14 |
||
|
11
|
11
91491-20025-00
Pin, Cotter
|
91491-20025-00 |
— | ||
|
12
|
12
8CR-23743-00-00
Stopper 1
|
8CR-23743-00-00 |
— | ||
|
13
|
13
8CV-2376A-10-00 Absorber Assy 1Ur for vx600 (for can) |
8CV-2376A-10-00 |
US $1,361.75 |
||
|
13
|
13
8CH-2376A-00-00 Absorber Assy 1Ur for vx700 |
8CH-2376A-00-00 |
US $633.15 |
||
|
13
|
13
8CV-2376A-00-00 Absorber Assy 1Ur for vx600 (for usa) |
8CV-2376A-00-00 |
US $1,402.70 |
||
| replacements | |||||
|
13
|
13
8CV-2376A-10-00 Absorber Assy 1Ur for vx600 (for usa) |
8CV-2376A-10-00 |
US $1,361.75 |
||
|
13
|
13
999-99999-99-00
Not Available
Ur for vx600 (for usa) |
999-99999-99-00 |
— | ||
|
14
|
14
8CV-2376J-00-00
Holder, Absorber
|
8CV-2376J-00-00 |
— | ||
|
15
|
15
8CV-2377J-00-00 Holder, Absorber 2 |
8CV-2377J-00-00 |
from US $15.86 |
||
|
16
|
16
8CV-23787-00-00 Spacer |
8CV-23787-00-00 |
US $10.19 |
||
|
17
|
17
95827-10040-00 Bolt, Flange |
95827-10040-00 |
from US $2.50 |
||
| replacements | |||||
|
17
|
17
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
|
17
|
17
95817-10040-00 Bolt, Flange |
95817-10040-00 |
from US $2.69 |
||
|
18
|
18
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
18
|
18
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
19
|
19
95827-10025-00 Bolt, Flange |
95827-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
20
|
20
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.89 |
||
| replacements | |||||
|
20
|
20
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.89 |
||
|
20
|
20
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.77 |
||
|
21
|
21
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
21
|
21
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
22
|
22
8CR-23851-00-00 Arm, Outside 1 |
8CR-23851-00-00 |
from US $34.41 |
||
|
23
|
23
8CR-23852-00-00
Arm, Outside 2
|
8CR-23852-00-00 |
— | ||
|
24
|
24
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.91 |
||
|
25
|
25
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
25
|
25
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
26
|
26
8CR-23853-00-00 Column, Ski 1 |
8CR-23853-00-00 |
from US $103.49 |
||
| replacement | |||||
|
26
|
26
8CR-23803-01-00 Column, Ski Assy |
8CR-23803-01-00 |
from US $103.49 |
||
|
27
|
27
90381-25106-00 Bush, Solid |
90381-25106-00 |
from US $4.25 |
||
| replacement | |||||
|
27
|
27
90381-25115-00 Bush, Solid |
90381-25115-00 |
from US $4.30 |
||
|
28
|
28
90201-301G3-00 Washer, Plate |
90201-301G3-00 |
from US $4.11 |
||
|
29
|
29
8CR-23741-00-00
Cap 1
|
8CR-23741-00-00 |
— | ||
| replacement | |||||
|
29
|
29
8CR-23741-10-00 Cap 1 |
8CR-23741-10-00 |
from US $2.69 |
||
|
30
|
30
8CV-2382E-01-00
Arm, Front 1
|
8CV-2382E-01-00 |
— | ||
| replacement | |||||
|
30
|
30
8CV-2382E-02-00
Arm, Front 1
|
8CV-2382E-02-00 |
— | ||
|
31
|
31
8CV-2382F-01-00
Arm, Front 2
|
8CV-2382F-01-00 |
— | ||
| replacement | |||||
|
31
|
31
8CV-2382F-02-00
Arm, Front 2
|
8CV-2382F-02-00 |
— | ||
|
32
|
32
8CR-2516A-00-00 Damper |
8CR-2516A-00-00 |
from US $12.82 |
||
|
33
|
33
90201-120T5-00 Washer, Plate |
90201-120T5-00 |
from US $2.50 |
||
|
34
|
34
90101-12780-00 Bolt(8Cj) |
90101-12780-00 |
from US $5.24 |
||
| replacement | |||||
|
34
|
34
901-01120-46-00 Bolt(8Cj) |
901-01120-46-00 |
from US $6.51 |
||
|
35
|
35
8CV-2384E-00-00 Arm, Control 1Upper (rh,lh) |
8CV-2384E-00-00 |
US $71.73 |
||
| replacement | |||||
|
35
|
35
8CV-2384E-01-00 Arm, Control 1Upper (rh,lh) |
8CV-2384E-01-00 |
US $71.73 |
||
|
36
|
36
8CR-23823-01-00
Joint 2
|
8CR-23823-01-00 |
— | ||
| replacement | |||||
|
36
|
36
8DN-23823-00-00 Joint 2 |
8DN-23823-00-00 |
from US $47.60 |
||
|
37
|
37
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
US $1.70 |
||
| replacement | |||||
|
37
|
37
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
38
|
38
8CV-2384F-00-00
Arm, Control 2
Lower (rh,lh) |
8CV-2384F-00-00 |
— | ||
|
39
|
39
8CR-23832-00-00
Joint 3
|
8CR-23832-00-00 |
— | ||
| replacement | |||||
|
39
|
39
8DN-23832-00-00 Joint 3 |
8DN-23832-00-00 |
US $20.50 |
||
|
40
|
40
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
41
|
41
90381-17110-00 Bush, Solid |
90381-17110-00 |
from US $4.16 |
||
|
42
|
42
90387-1009K-00 Collar |
90387-1009K-00 |
from US $4.72 |
||
|
43
|
43
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.89 |
||
| replacements | |||||
|
43
|
43
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.89 |
||
|
43
|
43
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.77 |
||
|
44
|
44
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
44
|
44
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
45
|
45
8CR-23779-00-00 Washer |
8CR-23779-00-00 |
from US $20.92 |
||
| replacement | |||||
|
45
|
45
8DF-23779-00-00 Washer |
8DF-23779-00-00 |
from US $22.67 |
||
|
46
|
46
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
47
|
47
90105-121A8-00 Bolt, Washer Based (901-05121-A |
90105-121A8-00 |
US $5.09 |
||
| replacement | |||||
|
47
|
47
901-05124-A2-00 Bolt, Flange |
901-05124-A2-00 |
US $4.56 |
||
|
48
|
48
956-17122-00-00
Nut, Self-Locking
|
956-17122-00-00 |
— | ||
| replacement | |||||
|
48
|
48
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $9.02 |
||
|
49
|
49
8CV-2386E-00-00 Bar, Stabilizer Front |
8CV-2386E-00-00 |
from US $166.37 |
||
|
50
|
50
8CR-2386H-00-00
Cover, Stabilizer Front
|
8CR-2386H-00-00 |
— | ||
|
51
|
51
8CR-2386G-00-00
Bush, Stabilizer Front
|
8CR-2386G-00-00 |
— | ||
|
52
|
52
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.66 |
||
|
53
|
53
8CR-2385L-00-00 Joint, Stabilizer 1 |
8CR-2385L-00-00 |
from US $89.94 |
||
|
54
|
54
90387-087L3-00 Collar |
90387-087L3-00 |
from US $1.98 |
||
|
55
|
55
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
56
|
56
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
56
|
56
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
57
|
57
8CV-77371-00-00
Emblem 15
|
8CV-77371-00-00 |
— | ||
