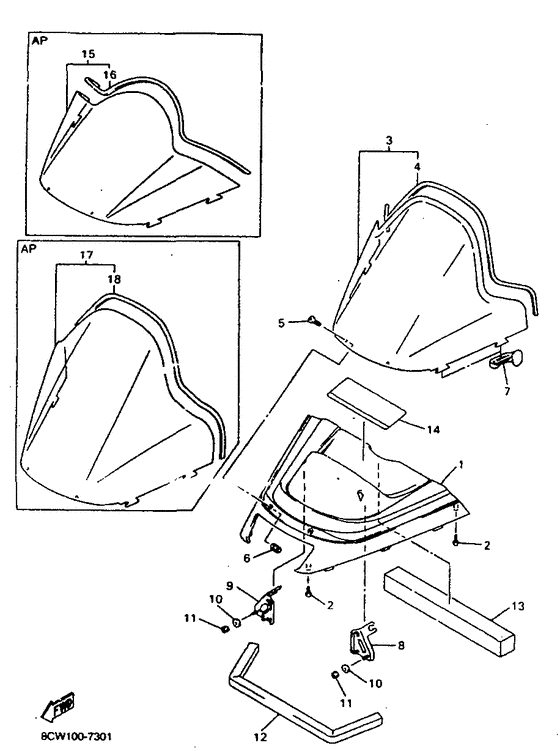

Windshield Diagram Yamaha VX600 Vmax 600 XTC
- Model code
- 8CX2
- Engine Capacity
- 593
- Year
- 1998
- Sales region
- Canada (999)
- Colour
- Yamaha Black (YB; 0033)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-77251-00-00 Cover, Headlight |
8CR-77251-00-00 |
from US $175.82 |
||
| replacement | |||||
|
01
|
01
8CR-77251-01-00 Cover, Headlight |
8CR-77251-01-00 |
from US $265.27 |
||
|
02
|
02
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
02
|
02
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
03
|
03
8CR-77210-00-00
Windshield Comp. (8Cr-77210-00-
|
8CR-77210-00-00 |
— | ||
| replacement | |||||
|
03
|
03
8CR-77210-00-XX
Wnd Medium Windshield Bk
|
8CR-77210-00-XX |
— | ||
|
04
|
04
8CR-77213-00-00
Trim, Upper
|
8CR-77213-00-00 |
— | ||
| replacement | |||||
|
04
|
04
87K-77213-00-00
Trim, Upper
|
87K-77213-00-00 |
— | ||
|
05
|
05
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.66 |
||
|
06
|
06
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.60 |
||
|
07
|
07
82H-77223-00-00 Fastner |
82H-77223-00-00 |
from US $1.94 |
||
|
08
|
08
8CR-77125-00-00 Stay 1 |
8CR-77125-00-00 |
from US $9.63 |
||
|
09
|
09
8CR-77126-00-00 Stay 2 |
8CR-77126-00-00 |
from US $17.28 |
||
|
10
|
10
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
11
|
11
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
12
|
12
8CR-77279-00-00
Damper, Noise 19
|
8CR-77279-00-00 |
— | ||
|
13
|
13
8CR-2199J-00-00 Shield, Noise 2 |
8CR-2199J-00-00 |
from US $42.40 |
||
|
14
|
14
8CX-77761-10-00
Label, warning 1
Ur for eur |
8CX-77761-10-00 |
— | ||
|
14
|
14
8CR-77761-00-00 Label, Warning 1Ur for usa/can |
8CR-77761-00-00 |
US $11.50 |
||
|
15
|
15
8CV-77210-00-00 Windshield Comp. (8Cv-77210-00- |
8CV-77210-00-00 |
from US $104.81 |
||
| replacement | |||||
|
15
|
15
8CV-77210-00-XX
Windshield Comp. (8Cv-77210-00-
|
8CV-77210-00-XX |
— | ||
|
16
|
16
8CV-77213-00-00 Trim, Upper |
8CV-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
16
|
16
87K-77213-00-00
Trim, Upper
|
87K-77213-00-00 |
— | ||
|
17
|
17
8CW-77210-00-00
Windshield Comp
|
8CW-77210-00-00 |
— | ||
| replacement | |||||
|
17
|
17
8DM-77210-00-XX
Windshield
|
8DM-77210-00-XX |
— | ||
|
18
|
18
8CW-77213-00-00 Trim, Upper |
8CW-77213-00-00 |
from US $30.04 |
||
| replacement | |||||
|
18
|
18
8DM-77213-00-00 Trim, Upper |
8DM-77213-00-00 |
from US $30.04 |
||
