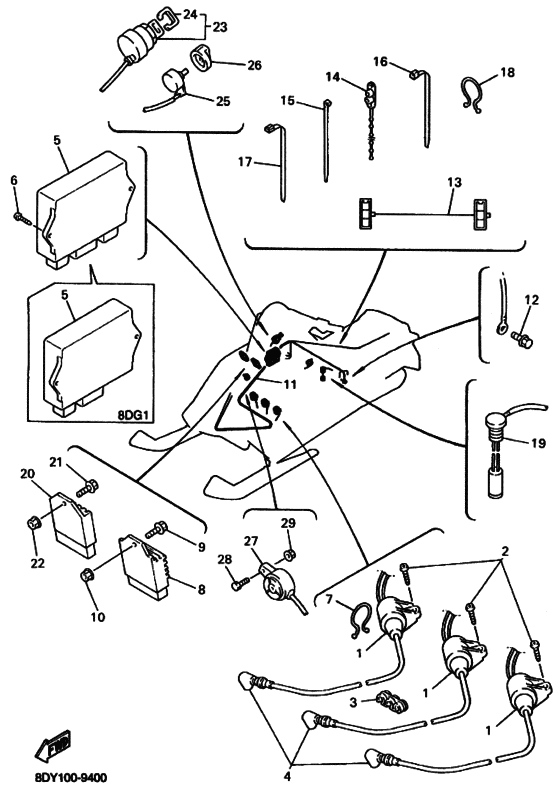

Electrical 1 Diagram Yamaha VX600 Vmax 600 DX
- Model code
- 8DG1
- Engine Capacity
- 593
- Year
- 1999
- Sales region
- Japan (030)
- Colour
- Vivid Red Cocktail 7 (VRC7; 0580)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DG-82310-00-00 Ignition Coil Assy |
8DG-82310-00-00 |
US $101.79 |
||
|
2
|
2
90157-06123-00 Screw, Pan Head |
90157-06123-00 |
from US $1.52 |
||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
90464-06247-00 Clamp |
90464-06247-00 |
US $1.44 |
||
|
4
|
4
8DF-82370-00-00 Plug Cap Assy |
8DF-82370-00-00 |
from US $38.41 |
||
|
5
|
5
8DG-85540-00-00 C.d.i. Unit Assy |
8DG-85540-00-00 |
from US $570.06 |
||
|
6
|
6
97707-60125-00 Screw, Tappingスクリユ，タツピング; |
97707-60125-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
97707-60525-00 Screw, Tappingスクリユ，タツピング; |
97707-60525-00 |
from US $2.13 |
||
|
7
|
7
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
8
|
8
8CR-81960-00-00 Rectifier & Regulatoレクチフアイヤアンドレギユレータアセンブリ; |
8CR-81960-00-00 |
from US $70.41 |
||
| replacement | |||||
|
8
|
8
8DX-81960-00-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
8DX-81960-00-00 |
from US $70.41 |
||
|
9
|
9
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
9
|
9
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
10
|
10
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
11
|
11
8CH-82590-10-00 Wire Harness Assyワイヤハーネスアセンブリ; |
8CH-82590-10-00 |
from US $297.95 |
||
|
12
|
12
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
12
|
12
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
13
|
13
8CR-8471G-00-00 Wire, Leadワイヤ，リード; |
8CR-8471G-00-00 |
from US $7.34 |
||
|
14
|
14
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
15
|
15
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
16
|
16
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
16
|
16
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
17
|
17
904-64130-77-00
Clamp
|
904-64130-77-00 |
— | ||
| replacement | |||||
|
17
|
17
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
18
|
18
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
19
|
19
8CR-85720-00-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
8CR-85720-00-00 |
from US $44.80 |
||
| replacement | |||||
|
19
|
19
8CR-85720-02-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
8CR-85720-02-00 |
from US $53.88 |
||
|
20
|
20
8AB-81910-00-00 Voltage Regulator Assyボルテージレギユレータアセンブリ; |
8AB-81910-00-00 |
US $120.44 |
||
|
21
|
21
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
21
|
21
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
22
|
22
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
23
|
23
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
23
|
23
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
24
|
24
526-82579-00-00 Cap, Key・キヤツプ，キー; |
526-82579-00-00 |
from US $4.96 |
||
|
25
|
25
8CR-87283-00-00
Resistor, Variable
レジスター，バリアブル; |
8CR-87283-00-00 |
— | ||
|
26
|
26
8AB-87284-00-00 Knob, Variable Resistorノブ，バリアブルレジスター; |
8AB-87284-00-00 |
from US $8.23 |
||
|
27
|
27
8CW-83383-00-00 Buzzerブザー; |
8CW-83383-00-00 |
from US $64.80 |
||
|
28
|
28
97007-05020-00 Boltボルト; |
97007-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
28
|
28
90101-05396-00 Bolt (2E9)ボルト; |
90101-05396-00 |
from US $1.70 |
||
|
28
|
28
970-27050-20-00
Bolt
ボルト; |
970-27050-20-00 |
— | ||
|
29
|
29
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
