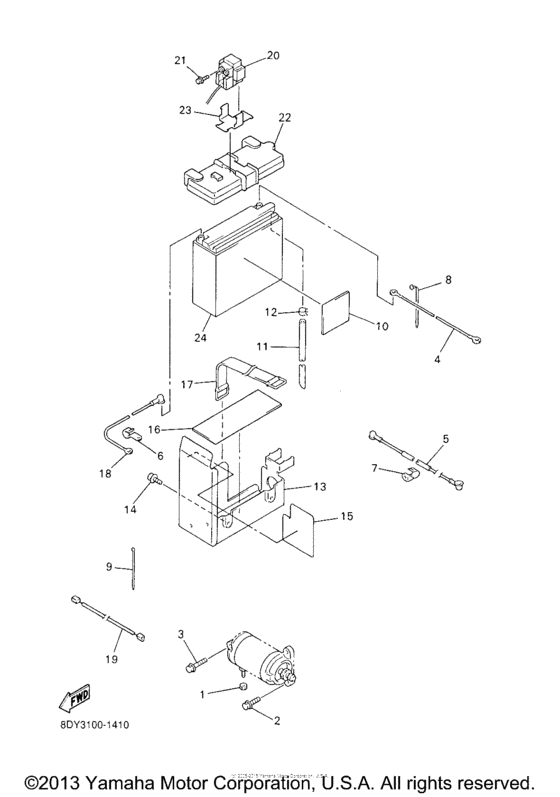

Electrical (2) Diagram Yamaha VX600 Vmax 600 DX
- Model code
- VX600DX
- Engine Capacity
- 593
- Year
- 2001
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
1
|
1
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
2
|
2
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.66 |
||
|
3
|
3
95027-08080-00 Bolt, Flange |
95027-08080-00 |
from US $2.22 |
||
|
4
|
4
8DY-82116-00-00 Wire, Minus Lead |
8DY-82116-00-00 |
from US $39.92 |
||
|
5
|
5
8DY-82117-00-00 Wire, Lead |
8DY-82117-00-00 |
from US $46.08 |
||
|
6
|
6
90462-08016-00 Clamp |
90462-08016-00 |
from US $28.03 |
||
|
7
|
7
90465-10381-00 Clamp |
90465-10381-00 |
US $15.91 |
||
|
8
|
8
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
8
|
8
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
9
|
9
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
10
|
10
8CW-82176-00-00 Damper |
8CW-82176-00-00 |
from US $5.38 |
||
|
11
|
11
8CW-8235W-01-00 Pipe |
8CW-8235W-01-00 |
from US $4.26 |
||
|
12
|
12
90467-08092-00 Clip |
90467-08092-00 |
from US $1.39 |
||
|
13
|
13
8DM-2199G-00-00 Bracket, Battery |
8DM-2199G-00-00 |
from US $132.06 |
||
|
14
|
14
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
14
|
14
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
15
|
15
8CW-2199H-00-00 Shield, Heat |
8CW-2199H-00-00 |
US $6.77 |
||
|
16
|
16
8DM-82122-00-00 Seat, Battery |
8DM-82122-00-00 |
US $10.58 |
||
|
17
|
17
8DM-82131-10-00 Band, Battery |
8DM-82131-10-00 |
from US $12.72 |
||
|
18
|
18
8DY-82115-00-00 Wire, Plus Lead |
8DY-82115-00-00 |
from US $19.98 |
||
|
19
|
19
8DY-82509-00-00 Wire, Sub Lead8DG3 |
8DY-82509-00-00 |
US $9.25 |
||
|
20
|
20
3EL-81940-00-00 Starter Relay Assy (Rc19-016)8DG3 |
3EL-81940-00-00 |
from US $47.05 |
||
| replacement | |||||
|
20
|
20
3EL-81940-02-00 Starter Relay Assy (Rc19-016)8DG3 |
3EL-81940-02-00 |
from US $31.52 |
||
|
20
|
20
4BH-81940-00-00 Starter Relay Assy (Rc19-005)8DY3 |
4BH-81940-00-00 |
from US $97.40 |
||
| replacement | |||||
|
20
|
20
4BH-81940-02-00 Starter Relay Assy (Rc19-005)8DY3 |
4BH-81940-02-00 |
from US $108.50 |
||
|
21
|
21
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
22
|
22
8DM-82129-00-00 Cover, Battery |
8DM-82129-00-00 |
from US $68.06 |
||
| replacement | |||||
|
22
|
22
8DM-82129-01-00 Cover, Battery |
8DM-82129-01-00 |
from US $67.25 |
||
|
23
|
23
8CY-81952-00-00
Holder, Relay
|
8CY-81952-00-00 |
— | ||
|
24
|
24
BTY-Y50N1-8L-A0
Battery Assy (Y50-N18L-A)
|
BTY-Y50N1-8L-A0 |
— | ||
| replacement | |||||
|
24
|
24
Y50-N18LA-00-00
Bat Y50-N18L-A(C50-N18L-A3) Yu
|
Y50-N18LA-00-00 |
— | ||
