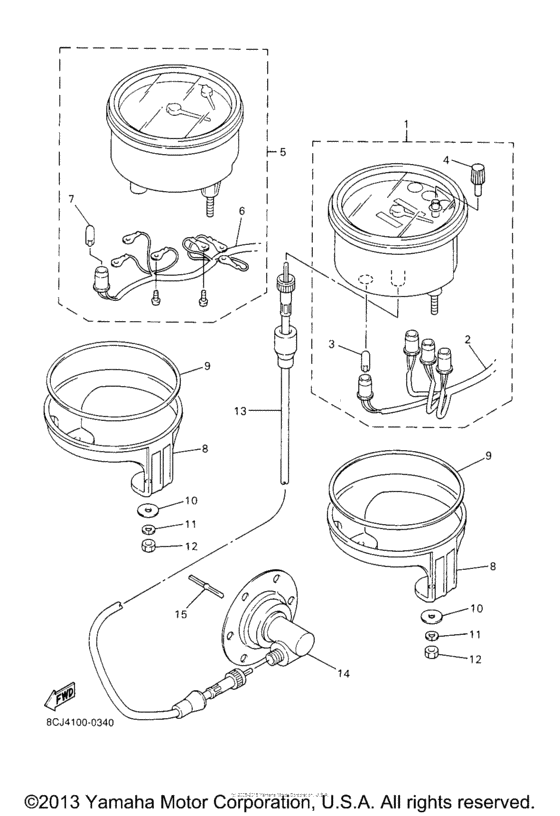

Meter Diagram Yamaha VX600 Vmax 600 DX
- Model code
- VX600DX
- Engine Capacity
- 593
- Year
- 2001
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DF-83510-40-00 Speedometer Assy (Mile/h) |
8DF-83510-40-00 |
from US $317.77 |
||
|
2
|
2
8DF-83509-40-00 Socket Cord Assy |
8DF-83509-40-00 |
US $90.77 |
||
|
3
|
3
1YT-83517-00-00 Bulb (12V-1.7W T10)12V-1.7W |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
3
|
3
3GM-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3GM-83517-00-00 |
from US $3.26 |
||
|
4
|
4
8DF-83578-00-00 Knob, Trip Meter |
8DF-83578-00-00 |
US $8.87 |
||
|
5
|
5
8DM-83540-00-00 Tachometer Assy8DY3 |
8DM-83540-00-00 |
US $526.81 |
||
|
5
|
5
8DF-83540-42-00 Tachometer Assy8DG3 |
8DF-83540-42-00 |
from US $456.14 |
||
|
6
|
6
8DF-83509-00-00 Socket Cord Assy |
8DF-83509-00-00 |
from US $74.25 |
||
| replacement | |||||
|
6
|
6
8DF-83509-10-00 Socket Cord Assy |
8DF-83509-10-00 |
from US $67.16 |
||
|
7
|
7
1YT-83517-00-00 Bulb (12V-1.7W T10)12V-1.7W |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
7
|
7
3GM-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3GM-83517-00-00 |
from US $3.26 |
||
|
8
|
8
8DF-83519-40-00 Bracket, Meter |
8DF-83519-40-00 |
US $19.03 |
||
|
9
|
9
8DF-83523-40-00 Damper |
8DF-83523-40-00 |
US $5.88 |
||
|
10
|
10
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
13
|
13
8CR-83550-00-00 Speedometer Cable Assy |
8CR-83550-00-00 |
from US $38.47 |
||
| replacement | |||||
|
13
|
13
8CR-83550-10-00 Speedometer Cable Assy |
8CR-83550-10-00 |
from US $38.47 |
||
|
14
|
14
8CR-47700-00-00 Meter Gear Housing Comp |
8CR-47700-00-00 |
from US $139.52 |
||
|
15
|
15
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $3.72 |
||
