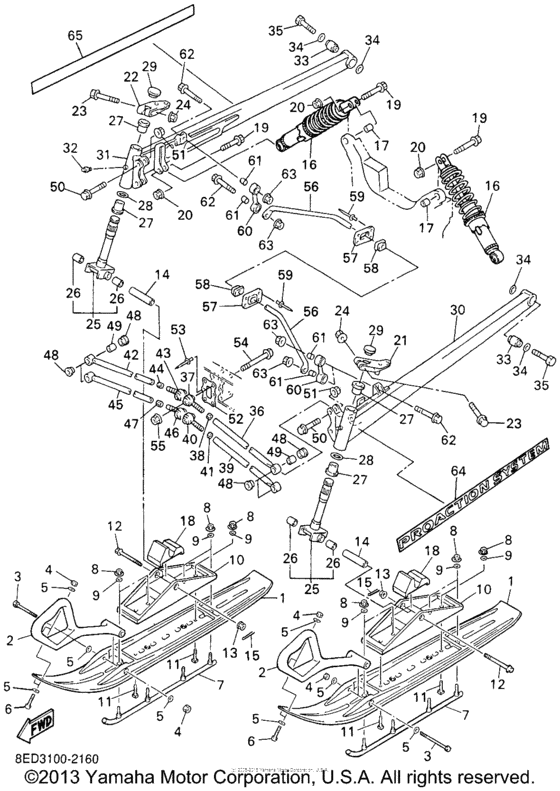

Ski Diagram Yamaha VX700 Mountain Max 700
- Model code
- MM700
- Engine Capacity
- 698
- Year
- 2002
- Sales region
- USA
- Model
- Mountain Max 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DP-23711-10-00 5.5 Black Ski Plasti |
8DP-23711-10-00 |
US $144.16 |
||
| replacement | |||||
|
1
|
1
GYT-8DP91-31-BK
5.5 Black Ski Plastic Gyt
|
GYT-8DP91-31-BK |
— | ||
|
2
|
2
8DF-23712-00-00
Handle
8ED3 |
8DF-23712-00-00 |
— | ||
| replacement | |||||
|
2
|
2
GYT-8DN91-35-BL
Skh Ski Handle Bl
8ED3 |
GYT-8DN91-35-BL |
— | ||
|
2
|
2
8EG-23712-00-00 Reinforcement, Head8EJ3 |
8EG-23712-00-00 |
US $69.27 |
||
| replacement | |||||
|
2
|
2
GYT-8DN91-35-BK
Reinforcement, Head
8EJ3 |
GYT-8DN91-35-BK |
— | ||
|
3
|
3
8DF-23755-00-00 Bolt, Reinf. Head 1 |
8DF-23755-00-00 |
US $7.90 |
||
|
4
|
4
8DF-23778-00-00 Nut, Flange |
8DF-23778-00-00 |
from US $1.57 |
||
| replacement | |||||
|
4
|
4
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
5
|
5
8DF-23737-00-00 Washer |
8DF-23737-00-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
92907-08200-00 Washer |
92907-08200-00 |
from US $1.66 |
||
|
6
|
6
8DP-23756-00-00 Bolt, Button Head |
8DP-23756-00-00 |
from US $3.11 |
||
| replacement | |||||
|
6
|
6
92017-08045-00 Bolt, Button Head |
92017-08045-00 |
from US $2.59 |
||
|
7
|
7
8DF-23731-20-00 Runner 1 |
8DF-23731-20-00 |
from US $127.99 |
||
| replacement | |||||
|
7
|
7
GYT-WERBR-01-XX
Rnr Runner 1 :sm
|
GYT-WERBR-01-XX |
— | ||
|
8
|
8
95707-08300-00 Nut, Nylon |
95707-08300-00 |
from US $3.02 |
||
| replacement | |||||
|
8
|
8
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
9
|
9
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
10
|
10
8EA-23766-00-00 Saddle 1 |
8EA-23766-00-00 |
from US $151.90 |
||
|
11
|
11
90108-08002-00 Bolt, Square |
90108-08002-00 |
from US $2.41 |
||
|
12
|
12
90105-10712-00 Bolt, Flange |
90105-10712-00 |
from US $9.98 |
||
|
13
|
13
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
14
|
14
90387-1012H-00 Collar |
90387-1012H-00 |
from US $14.14 |
||
|
15
|
15
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
16
|
16
8ED-2376A-00-00 Absorber Assy 1 |
8ED-2376A-00-00 |
from US $326.13 |
||
|
17
|
17
8CR-2376B-00-00 Bush |
8CR-2376B-00-00 |
from US $6.02 |
||
|
18
|
18
8CS-23743-00-00 Stopper 1 |
8CS-23743-00-00 |
US $26.77 |
||
|
19
|
19
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.89 |
||
| replacements | |||||
|
19
|
19
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.89 |
||
|
19
|
19
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.77 |
||
|
20
|
20
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
21
|
21
8CR-23851-00-00 Arm, Outside 1 |
8CR-23851-00-00 |
from US $34.41 |
||
|
22
|
22
8CR-23852-00-00
Arm, Outside 2
|
8CR-23852-00-00 |
— | ||
|
23
|
23
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.91 |
||
|
24
|
24
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
25
|
25
8CR-23803-01-00 Column, Ski Assy |
8CR-23803-01-00 |
from US $103.49 |
||
|
26
|
26
90384-16251-00 Bush, Bimetal Formed |
90384-16251-00 |
from US $3.60 |
||
|
27
|
27
90381-25115-00 Bush, Solid |
90381-25115-00 |
from US $4.30 |
||
|
28
|
28
90201-301G3-00 Washer, Plate |
90201-301G3-00 |
from US $4.11 |
||
|
29
|
29
8CR-23741-10-00 Cap 1 |
8CR-23741-10-00 |
from US $2.69 |
||
|
30
|
30
8CS-2382E-20-00 Arm, Front 1 |
8CS-2382E-20-00 |
US $316.10 |
||
|
31
|
31
8CS-2382F-20-00 Arm, Front 2 |
8CS-2382F-20-00 |
from US $354.01 |
||
|
32
|
32
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
32
|
32
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
33
|
33
8CR-2516A-00-00 Damper |
8CR-2516A-00-00 |
from US $12.82 |
||
|
34
|
34
90201-120T5-00 Washer, Plate |
90201-120T5-00 |
from US $2.50 |
||
|
35
|
35
90101-12780-00 Bolt(8Cj) |
90101-12780-00 |
from US $5.24 |
||
| replacement | |||||
|
35
|
35
901-01120-46-00 Bolt(8Cj) |
901-01120-46-00 |
from US $6.51 |
||
|
36
|
36
8CS-2384E-20-00 Arm, Control 1 |
8CS-2384E-20-00 |
from US $52.77 |
||
|
37
|
37
8DN-23823-00-00 Joint 2 |
8DN-23823-00-00 |
from US $47.60 |
||
|
38
|
38
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
US $1.70 |
||
| replacement | |||||
|
38
|
38
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
39
|
39
8CS-2384F-20-00
Arm, Control 2
|
8CS-2384F-20-00 |
— | ||
|
40
|
40
8DN-23832-00-00 Joint 3 |
8DN-23832-00-00 |
US $20.50 |
||
|
41
|
41
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
42
|
42
8CS-2384E-20-00 Arm, Control 1 |
8CS-2384E-20-00 |
from US $52.77 |
||
|
43
|
43
8DN-23823-00-00 Joint 2 |
8DN-23823-00-00 |
from US $47.60 |
||
|
44
|
44
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
US $1.70 |
||
| replacement | |||||
|
44
|
44
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
45
|
45
8CS-2384F-20-00
Arm, Control 2
|
8CS-2384F-20-00 |
— | ||
|
46
|
46
8DN-23832-00-00 Joint 3 |
8DN-23832-00-00 |
US $20.50 |
||
|
47
|
47
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
48
|
48
90381-17110-00 Bush, Solid |
90381-17110-00 |
from US $4.16 |
||
|
49
|
49
90387-1009K-00 Collar |
90387-1009K-00 |
from US $4.72 |
||
|
50
|
50
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.89 |
||
| replacements | |||||
|
50
|
50
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.89 |
||
|
50
|
50
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.77 |
||
|
51
|
51
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
52
|
52
8DF-23779-00-00 Washer |
8DF-23779-00-00 |
from US $22.67 |
||
|
53
|
53
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
54
|
54
90105-121A8-00 Bolt, Washer Based (901-05121-A901-05121-A |
90105-121A8-00 |
US $5.09 |
||
| replacement | |||||
|
54
|
54
901-05124-A2-00 Bolt, Flange901-05121-A |
901-05124-A2-00 |
US $4.56 |
||
|
55
|
55
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $9.02 |
||
|
56
|
56
8CS-2386E-00-00 Bar, Stabilizer Front |
8CS-2386E-00-00 |
from US $221.06 |
||
|
57
|
57
8CR-2386H-00-00
Cover, Stabilizer Front
|
8CR-2386H-00-00 |
— | ||
|
58
|
58
8CR-2386G-00-00
Bush, Stabilizer Front
|
8CR-2386G-00-00 |
— | ||
|
59
|
59
90267-47186-00 Rivet, Blind (4.7X16.4 Black)4.7X16.4 BLACK |
90267-47186-00 |
from US $1.66 |
||
|
60
|
60
8CR-2385L-00-00 Joint, Stabilizer 1 |
8CR-2385L-00-00 |
from US $89.94 |
||
|
61
|
61
90387-087L3-00 Collar |
90387-087L3-00 |
from US $1.98 |
||
|
62
|
62
90105-08345-00 Bolt, Flange |
90105-08345-00 |
from US $1.07 |
||
| replacement | |||||
|
62
|
62
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
63
|
63
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
63
|
63
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
64
|
64
8EA-77371-30-00 Emblem 1515 |
8EA-77371-30-00 |
from US $31.03 |
||
|
65
|
65
8EA-77372-30-00 Emblem 1616 |
8EA-77372-30-00 |
from US $31.03 |
||
