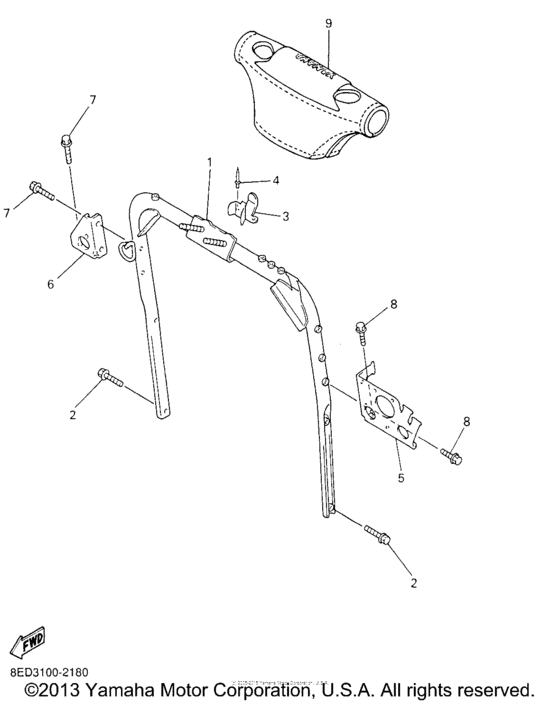

Steering gate Diagram Yamaha VX700 Mountain Max 700
- Model code
- MM700
- Engine Capacity
- 698
- Year
- 2002
- Sales region
- USA
- Model
- Mountain Max 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CR-23870-10-00
Steering Gate Comp
|
8CR-23870-10-00 |
— | ||
|
2
|
2
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
3
|
3
8DF-23867-00-00 Holder 2 |
8DF-23867-00-00 |
from US $12.47 |
||
|
4
|
4
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)4.8X12.6 SILVER |
90267-48095-00 |
from US $1.98 |
||
|
5
|
5
8DN-23882-00-00 Bracket 2 |
8DN-23882-00-00 |
from US $41.90 |
||
|
6
|
6
8CR-23881-00-00 Bracket 1 |
8CR-23881-00-00 |
from US $8.08 |
||
|
7
|
7
958-27060-16-00
Bolt, Flange
|
958-27060-16-00 |
— | ||
| replacement | |||||
|
7
|
7
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
8
|
8
90105-060A6-00 Bolt, Flange |
90105-060A6-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
9
|
9
8ED-23815-10-00
Pad, Steering
8ED3 |
8ED-23815-10-00 |
— | ||
|
9
|
9
8ED-23815-00-00 Pad, Steering8EJ3 |
8ED-23815-00-00 |
from US $115.16 |
||
