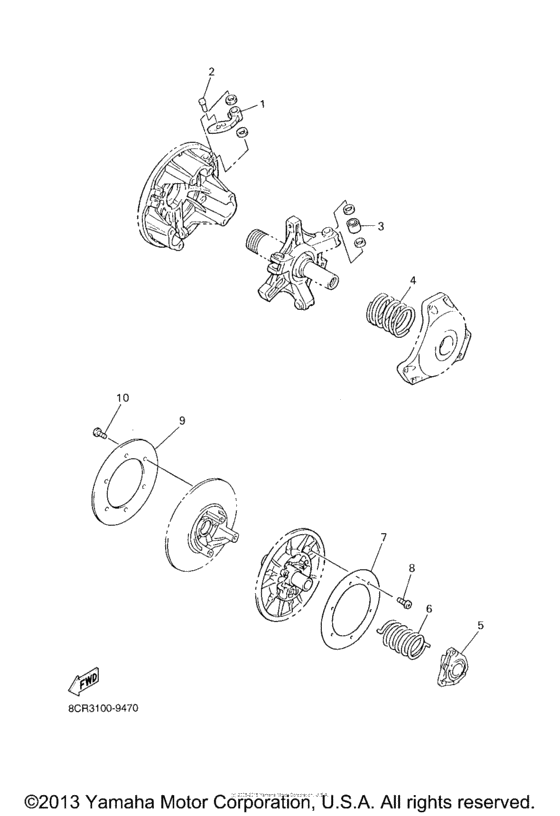

Alternate drive setting (1) Diagram Yamaha VX700 Vmax 700
- Model code
- VX700F
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- USA
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CR-17605-10-00 Weight CompUR USA |
8CR-17605-10-00 |
from US $61.20 |
||
|
1
|
1
8CH-17605-10-00 Weight CompUR USA |
8CH-17605-10-00 |
from US $61.20 |
||
|
1
|
1
8DF-17605-10-00 Weight CompUR USA |
8DF-17605-10-00 |
from US $61.20 |
||
|
1
|
1
8DG-17605-00-00 Weight CompUR USA |
8DG-17605-00-00 |
from US $56.65 |
||
|
1
|
1
8DJ-17605-00-00 Weight CompUR USA |
8DJ-17605-00-00 |
from US $60.93 |
||
|
1
|
1
8DN-17605-20-00 Weight CompUR USA |
8DN-17605-20-00 |
from US $56.65 |
||
|
2
|
2
90261-06019-00 Rivet, Countersunk (St13.3Mm)UR USA |
90261-06019-00 |
from US $1.66 |
||
|
2
|
2
90261-06034-00 Rivet, Countersunk (St13.9Mm)UR USA |
90261-06034-00 |
from US $1.66 |
||
|
2
|
2
902-61060-33-00 Rivet, Countersunk (St17.2Mm)UR USA |
902-61060-33-00 |
from US $2.35 |
||
|
2
|
2
90261-06028-00 Rivet, Countersunk (Al10.3Mm)UR USA |
90261-06028-00 |
from US $1.39 |
||
|
2
|
2
90261-06015-00 Rivet, Countersunk (St10.3Mm)UR USA |
90261-06015-00 |
from US $1.35 |
||
|
2
|
2
90261-06017-00 Rivet, Countersunk (St11.3Mm)UR USA |
90261-06017-00 |
from US $1.70 |
||
|
3
|
3
8CR-17624-10-00 Roller, CompUR USA |
8CR-17624-10-00 |
from US $58.03 |
||
|
3
|
3
8CR-17624-20-00 Roller, CompUR USA |
8CR-17624-20-00 |
from US $58.03 |
||
|
3
|
3
8CR-17624-00-00 Roller, CompUR USA |
8CR-17624-00-00 |
from US $58.03 |
||
|
3
|
3
8CR-17624-30-00 Roller, CompUR USA |
8CR-17624-30-00 |
from US $58.03 |
||
|
4
|
4
90501-582L6-00 Spring, CompressionUR WH-GR-WH USA |
90501-582L6-00 |
from US $28.34 |
||
|
4
|
4
90501-624L8-00 Spring, CompressionUR OR-SL-OR USA |
90501-624L8-00 |
from US $28.34 |
||
|
4
|
4
905-01603-L3-00 Spring, CompressionUR GR-WH-GR USA |
905-01603-L3-00 |
from US $30.18 |
||
|
4
|
4
90501-603L2-00 Spring, CompressionUR Y-WH-Y USA |
90501-603L2-00 |
from US $30.89 |
||
|
4
|
4
90501-602L9-00 Spring, CompressionUR P-GR-P USA |
90501-602L9-00 |
from US $29.33 |
||
|
4
|
4
90501-602L8-00 Spring, CompressionUR GR-GR-GR USA |
90501-602L8-00 |
from US $28.34 |
||
|
4
|
4
90501-602L3-00 Spring, CompressionUR P-SL-P USA |
90501-602L3-00 |
from US $26.49 |
||
|
4
|
4
90501-601L8-00 Spring, CompressionUR OR-P-OR USA |
90501-601L8-00 |
from US $28.34 |
||
|
4
|
4
90501-601L7-00 Spring, CompressionUR P-P-P USA |
90501-601L7-00 |
from US $28.34 |
||
|
4
|
4
90501-583L5-00 Spring, CompressionUR WH-P-WH USA |
90501-583L5-00 |
from US $28.34 |
||
|
4
|
4
90501-583L4-00 Spring, CompressionUR WH-SL-WH USA |
90501-583L4-00 |
from US $28.34 |
||
|
4
|
4
90501-583L1-00 Spring, CompressionUR WH-WH-WH USA |
90501-583L1-00 |
from US $28.34 |
||
|
4
|
4
90501-583L0-00 Spring, CompressionUR BL-WH-BL USA |
90501-583L0-00 |
from US $28.34 |
||
|
4
|
4
90501-551L3-00 Spring, CompressionUR BL-P-BL USA |
90501-551L3-00 |
from US $26.78 |
||
|
4
|
4
90501-551L9-00 Spring, CompressionUR BL-SL-BL USA |
90501-551L9-00 |
from US $22.95 |
||
| replacement | |||||
|
4
|
4
905-01570-A0-00 Spring, CompressionUR BL-SL-BL USA |
905-01570-A0-00 |
from US $22.95 |
||
|
4
|
4
90501-552L5-00 Spring, CompressionUR BL-GR-BL USA |
90501-552L5-00 |
from US $26.49 |
||
|
4
|
4
90501-581L5-00 Spring, CompressionUR Y-P-Y USA |
90501-581L5-00 |
from US $28.34 |
||
|
4
|
4
90501-581L6-00 Spring, CompressionUR GR-P-GR USA |
90501-581L6-00 |
from US $28.34 |
||
|
4
|
4
90501-582L1-00 Spring, CompressionUR Y-SL-Y USA |
90501-582L1-00 |
from US $28.34 |
||
|
4
|
4
90501-582L2-00 Spring, CompressionUR GR-SL-GR USA |
90501-582L2-00 |
from US $28.34 |
||
|
4
|
4
90501-582L7-00 Spring, CompressionUR Y-GR-Y USA |
90501-582L7-00 |
from US $28.34 |
||
|
5
|
5
8BV-17604-11-00 Seat Spring SetUR USA |
8BV-17604-11-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-31-00 Seat Spring SetUR USA |
8BV-17604-31-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-51-00 Seat Spring SetUR USA |
8BV-17604-51-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-71-00 Seat Spring SetUR USA |
8BV-17604-71-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-91-00 Seat Spring SetUR USA |
8BV-17604-91-00 |
from US $142.23 |
||
|
6
|
6
90508-500B1-00 Spring, TorsionUR USA |
90508-500B1-00 |
from US $15.87 |
||
|
6
|
6
90508-556A2-00 Spring, TorsionUR USA |
90508-556A2-00 |
from US $21.96 |
||
|
6
|
6
90508-556A7-00 Spring, TorsionUR USA |
90508-556A7-00 |
from US $29.19 |
||
|
6
|
6
90508-536A9-00 Spring, TorsionUR USA |
90508-536A9-00 |
from US $9.92 |
||
|
7
|
7
8CM-17665-00-00 Plate 1USA |
8CM-17665-00-00 |
from US $24.65 |
||
|
8
|
8
90150-05040-00 Screw, Round Head |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
9
|
9
8CM-17675-00-00 Plate 2USA |
8CM-17675-00-00 |
from US $24.65 |
||
|
10
|
10
90150-05040-00 Screw, Round Head |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
