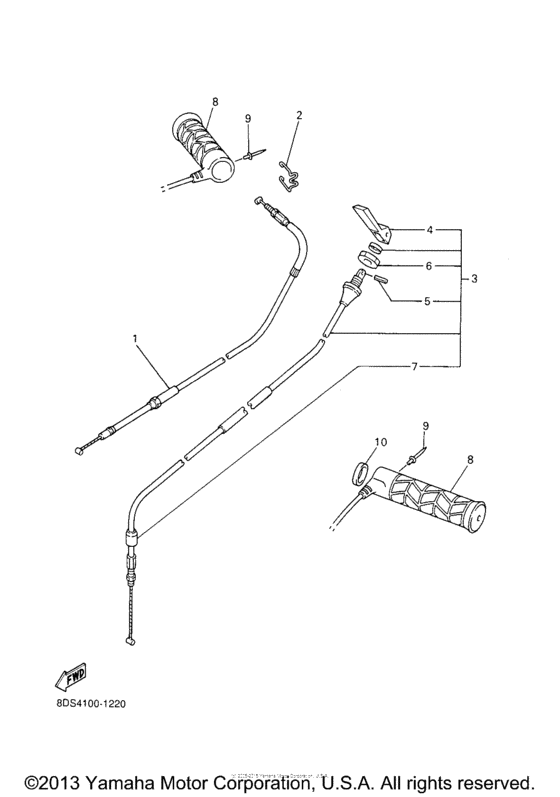

Control cable Diagram Yamaha VX700 Vmax 700
- Model code
- VX700F
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- USA
- Model
- Vmax 700
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CH-26311-01-00 Cable, Throttle 1USA |
8CH-26311-01-00 |
from US $34.83 |
||
|
2
|
2
8M6-26391-01-00
Clip, Cable
|
8M6-26391-01-00 |
— | ||
|
3
|
3
8CH-26330-02-00 Starter Cable Assy |
8CH-26330-02-00 |
US $56.57 |
||
|
4
|
4
8U9-26325-00-00 Knob, Starter |
8U9-26325-00-00 |
from US $6.52 |
||
|
5
|
5
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
5
|
5
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
6
|
6
8G8-26333-00-00 Nut |
8G8-26333-00-00 |
from US $3.12 |
||
|
7
|
7
8CR-26329-00-00
Cap, Rubber
|
8CR-26329-00-00 |
— | ||
|
8
|
8
8DM-26240-00-00 Grip Assy |
8DM-26240-00-00 |
from US $78.47 |
||
| replacement | |||||
|
8
|
8
8DM-26240-02-00 Grip Assy |
8DM-26240-02-00 |
from US $80.73 |
||
|
9
|
9
90267-48014-00 Rivet, Blind4.8X15.1 BLACK USA |
90267-48014-00 |
from US $1.66 |
||
|
10
|
10
90387-220X0-00 Collar |
90387-220X0-00 |
from US $1.66 |
||
