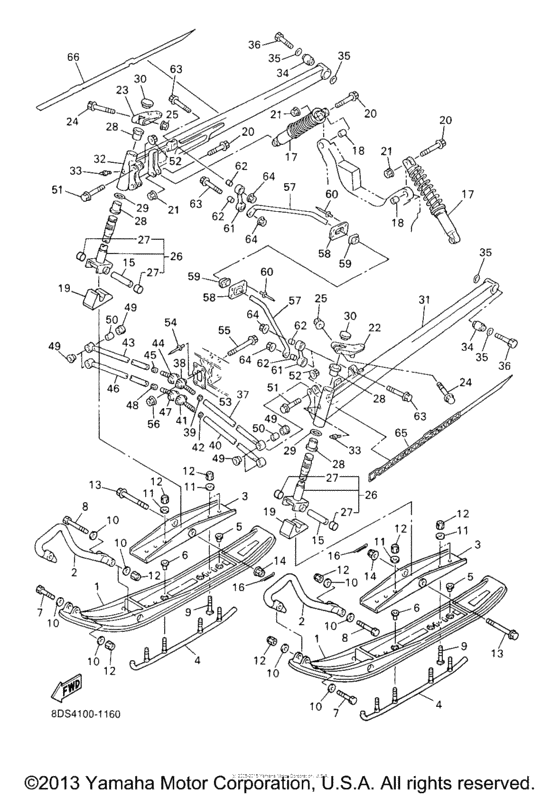

Ski Diagram Yamaha VX700 Vmax 700
- Model code
- VX700F
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- USA
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DM-23711-00-00 Ski 1USA |
8DM-23711-00-00 |
from US $383.28 |
||
| replacement | |||||
|
1
|
1
8DM-23711-00-BK Ski Comp :smUSA |
8DM-23711-00-BK |
US $474.96 |
||
|
2
|
2
8DM-23712-00-00
Reinforcement, Head
|
8DM-23712-00-00 |
— | ||
| replacement | |||||
|
2
|
2
8DM-23712-00-BK Reinforcement, Head |
8DM-23712-00-BK |
US $25.99 |
||
|
3
|
3
8DM-23766-00-00
Saddle 1
USA |
8DM-23766-00-00 |
— | ||
|
4
|
4
8DM-23731-00-00 Runner 1USA |
8DM-23731-00-00 |
US $169.99 |
||
| replacement | |||||
|
4
|
4
8DM-23731-00-XX Runner 1 :smUSA |
8DM-23731-00-XX |
US $259.92 |
||
|
5
|
5
8DM-23751-00-00 Bush, Ski 1USA |
8DM-23751-00-00 |
from US $4.82 |
||
|
6
|
6
8DM-23751-10-00 Bush, Ski 1USA |
8DM-23751-10-00 |
from US $5.27 |
||
|
7
|
7
970-27080-55-00
Bolt, Hexagon
|
970-27080-55-00 |
— | ||
| replacement | |||||
|
7
|
7
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
8
|
8
970-27081-00-00 Bolt, Hexagon |
970-27081-00-00 |
from US $2.13 |
||
|
9
|
9
90108-08002-00 Bolt, Square |
90108-08002-00 |
from US $2.41 |
||
|
10
|
10
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
11
|
11
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
12
|
12
95707-08300-00 Nut, Nylon |
95707-08300-00 |
from US $3.02 |
||
| replacement | |||||
|
12
|
12
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
13
|
13
90105-10712-00 Bolt, Flange |
90105-10712-00 |
from US $9.98 |
||
|
14
|
14
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
15
|
15
90387-1012H-00 Collar |
90387-1012H-00 |
from US $14.14 |
||
|
16
|
16
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
16
|
16
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
17
|
17
8DS-2376A-10-00
Absorber Assy 1
USA |
8DS-2376A-10-00 |
— | ||
|
18
|
18
8CR-2376B-00-00 Bush |
8CR-2376B-00-00 |
from US $6.02 |
||
|
19
|
19
8CR-23743-10-00 Stopper 1USA |
8CR-23743-10-00 |
from US $19.56 |
||
|
20
|
20
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.89 |
||
| replacements | |||||
|
20
|
20
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.89 |
||
|
20
|
20
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.77 |
||
|
21
|
21
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
22
|
22
8CR-23851-00-00 Arm, Outside 1USA |
8CR-23851-00-00 |
from US $34.41 |
||
|
23
|
23
8CR-23852-00-00
Arm, Outside 2
USA |
8CR-23852-00-00 |
— | ||
|
24
|
24
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.91 |
||
|
25
|
25
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
26
|
26
8DM-23803-00-00
Column, Ski Assy
|
8DM-23803-00-00 |
— | ||
|
27
|
27
90384-16251-00 Bush, Bimetal Formed |
90384-16251-00 |
from US $3.60 |
||
|
28
|
28
90381-25115-00 Bush, Solid |
90381-25115-00 |
from US $4.30 |
||
|
29
|
29
90201-301G3-00 Washer, Plate |
90201-301G3-00 |
from US $4.11 |
||
|
30
|
30
8CR-23741-10-00 Cap 1USA |
8CR-23741-10-00 |
from US $2.69 |
||
|
31
|
31
8DM-2382E-10-00
Arm, Front 1
USA |
8DM-2382E-10-00 |
— | ||
|
32
|
32
8DM-2382F-10-00 Arm, Front 2USA |
8DM-2382F-10-00 |
from US $258.16 |
||
|
33
|
33
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
33
|
33
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
34
|
34
8CR-2516A-00-00 Damper |
8CR-2516A-00-00 |
from US $12.82 |
||
|
35
|
35
90201-120T5-00 Washer, Plate |
90201-120T5-00 |
from US $2.50 |
||
|
36
|
36
90101-12780-00 Bolt(8Cj) |
90101-12780-00 |
from US $5.24 |
||
| replacement | |||||
|
36
|
36
901-01120-46-00 Bolt(8Cj) |
901-01120-46-00 |
from US $6.51 |
||
|
37
|
37
8CR-2384E-20-00 Arm, Control 1USA |
8CR-2384E-20-00 |
from US $55.80 |
||
|
38
|
38
8CR-23823-01-00
Joint 2
USA |
8CR-23823-01-00 |
— | ||
| replacement | |||||
|
38
|
38
8DN-23823-00-00 Joint 2USA |
8DN-23823-00-00 |
from US $47.60 |
||
|
39
|
39
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
US $1.70 |
||
| replacement | |||||
|
39
|
39
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
40
|
40
8CR-2384F-20-00 Arm, Control 2USA |
8CR-2384F-20-00 |
from US $66.87 |
||
|
41
|
41
8CR-23832-00-00
Joint 3
USA |
8CR-23832-00-00 |
— | ||
| replacement | |||||
|
41
|
41
8DN-23832-00-00 Joint 3USA |
8DN-23832-00-00 |
US $20.50 |
||
|
42
|
42
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
43
|
43
8CR-2384E-20-00 Arm, Control 1USA |
8CR-2384E-20-00 |
from US $55.80 |
||
|
44
|
44
8CR-23823-01-00
Joint 2
USA |
8CR-23823-01-00 |
— | ||
| replacement | |||||
|
44
|
44
8DN-23823-00-00 Joint 2USA |
8DN-23823-00-00 |
from US $47.60 |
||
|
45
|
45
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
US $1.70 |
||
| replacement | |||||
|
45
|
45
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
46
|
46
8CR-2384F-20-00 Arm, Control 2USA |
8CR-2384F-20-00 |
from US $66.87 |
||
|
47
|
47
8CR-23832-00-00
Joint 3
USA |
8CR-23832-00-00 |
— | ||
| replacement | |||||
|
47
|
47
8DN-23832-00-00 Joint 3USA |
8DN-23832-00-00 |
US $20.50 |
||
|
48
|
48
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
49
|
49
90381-17110-00 Bush, Solid |
90381-17110-00 |
from US $4.16 |
||
|
50
|
50
90387-1009K-00 Collar |
90387-1009K-00 |
from US $4.72 |
||
|
51
|
51
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.89 |
||
| replacements | |||||
|
51
|
51
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.89 |
||
|
51
|
51
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.77 |
||
|
52
|
52
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
53
|
53
8DF-23779-00-00 Washer |
8DF-23779-00-00 |
from US $22.67 |
||
|
54
|
54
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
55
|
55
90105-121A8-00 Bolt, Washer Based (901-05121-A |
90105-121A8-00 |
US $5.09 |
||
| replacement | |||||
|
55
|
55
901-05124-A2-00 Bolt, Flange |
901-05124-A2-00 |
US $4.56 |
||
|
56
|
56
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $9.02 |
||
|
57
|
57
8CR-2386E-00-00 Bar, Stabilizer Front |
8CR-2386E-00-00 |
from US $221.06 |
||
|
58
|
58
8CR-2386H-00-00
Cover, Stabilizer Front
|
8CR-2386H-00-00 |
— | ||
|
59
|
59
8CR-2386G-00-00
Bush, Stabilizer Front
|
8CR-2386G-00-00 |
— | ||
|
60
|
60
90267-47186-00 Rivet, Blind (4.7X16.4 Black)4.7X16.4 BLACK USA |
90267-47186-00 |
from US $1.66 |
||
|
61
|
61
8CR-2385L-00-00 Joint, Stabilizer 1USA |
8CR-2385L-00-00 |
from US $89.94 |
||
|
62
|
62
90387-087L3-00 Collar |
90387-087L3-00 |
from US $1.98 |
||
|
63
|
63
90105-08345-00 Bolt, Flange |
90105-08345-00 |
from US $1.07 |
||
| replacement | |||||
|
63
|
63
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
64
|
64
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
64
|
64
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
65
|
65
8DS-77371-00-00 Emblem 1515 USA |
8DS-77371-00-00 |
from US $81.79 |
||
|
66
|
66
8DS-77372-00-00 Emblem 1616 USA |
8DS-77372-00-00 |
US $49.50 |
||
