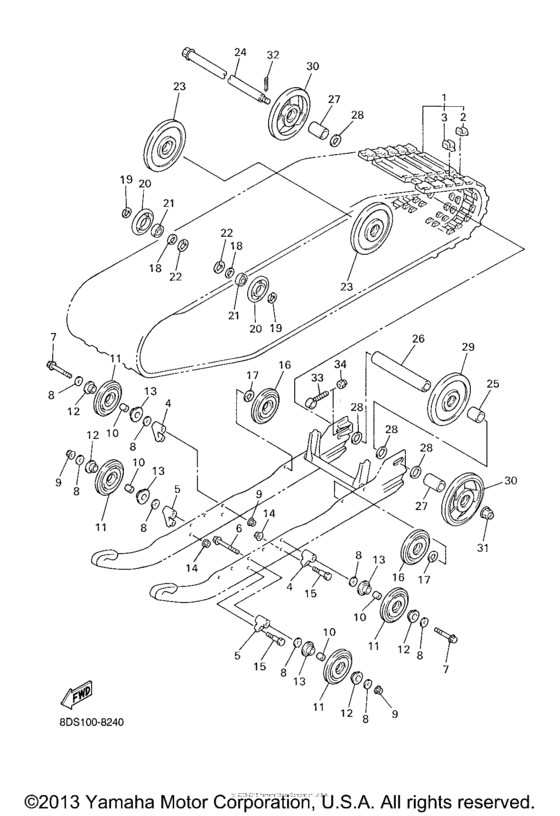

Track suspension (1) Diagram Yamaha VX700 Vmax 700
- Model code
- VX700F
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- USA
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8EA-47110-10-00 Track Assy |
8EA-47110-10-00 |
from US $2,206.04 |
||
|
2
|
2
8EA-47113-00-00 Guide, Plate |
8EA-47113-00-00 |
from US $5.31 |
||
|
3
|
3
8EA-47115-30-00 Metal, Slide |
8EA-47115-30-00 |
from US $5.17 |
||
| replacement | |||||
|
3
|
3
8EA-47115-00-00 Metal, Slide |
8EA-47115-00-00 |
from US $7.47 |
||
|
4
|
4
8DF-47419-00-00 Bracket 7USA |
8DF-47419-00-00 |
from US $31.55 |
||
|
5
|
5
8DF-47419-10-00 Bracket 7USA |
8DF-47419-10-00 |
from US $32.46 |
||
|
6
|
6
90105-10392-00 Bolt, Flange |
90105-10392-00 |
from US $4.68 |
||
|
7
|
7
95817-10085-00 Bolt, Flange |
95817-10085-00 |
US $3.52 |
||
|
8
|
8
90201-100S0-00 Washer, Plate |
90201-100S0-00 |
from US $3.40 |
||
|
9
|
9
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
10
|
10
90387-10079-00 Collar |
90387-10079-00 |
US $15.93 |
||
|
11
|
11
8CR-47310-10-00 Bogey Wheel W Spacer |
8CR-47310-10-00 |
from US $29.07 |
||
| replacements | |||||
|
11
|
11
8CR-4731A-00-00 CAP,HOUSING |
8CR-4731A-00-00 |
US $27.54 |
||
|
11
|
11
8CR-47310-10-XX
Suspension Wheel A :sm
|
8CR-47310-10-XX |
— | ||
|
12
|
12
8CR-47341-00-00
Spacer
|
8CR-47341-00-00 |
— | ||
| replacements | |||||
|
12
|
12
8CR-47341-01-XX
Spacer
|
8CR-47341-01-XX |
— | ||
|
12
|
12
8CR-47341-01-00 Spacer |
8CR-47341-01-00 |
US $16.11 |
||
|
13
|
13
8CR-47341-10-00 Spacer |
8CR-47341-10-00 |
from US $9.67 |
||
| replacements | |||||
|
13
|
13
8CR-47341-11-XX
Spacer
|
8CR-47341-11-XX |
— | ||
|
13
|
13
8CR-47341-11-00 Spacer |
8CR-47341-11-00 |
from US $13.79 |
||
|
14
|
14
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
14
|
14
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
15
|
15
901-01087-74-00 Bolt |
901-01087-74-00 |
from US $3.12 |
||
|
16
|
16
8CR-47310-10-00 Bogey Wheel W Spacer |
8CR-47310-10-00 |
from US $29.07 |
||
| replacements | |||||
|
16
|
16
8CR-4731A-00-00 CAP,HOUSING |
8CR-4731A-00-00 |
US $27.54 |
||
|
16
|
16
8CR-47310-10-XX
Suspension Wheel A :sm
|
8CR-47310-10-XX |
— | ||
|
17
|
17
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.81 |
||
|
18
|
18
90387-2004V-00 Collar |
90387-2004V-00 |
from US $4.82 |
||
|
19
|
19
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
20
|
20
8H8-47320-00-00 Suspension Wheel Comp |
8H8-47320-00-00 |
from US $54.71 |
||
| replacement | |||||
|
20
|
20
8H8-47320-00-XX
Suspension Wheel :sm
|
8H8-47320-00-XX |
— | ||
|
21
|
21
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.70 |
||
|
22
|
22
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
23
|
23
8CR-47550-00-00 Guide Wheel Assy |
8CR-47550-00-00 |
US $70.19 |
||
|
24
|
24
8L8-47520-02-00 Rear Axle Comp |
8L8-47520-02-00 |
from US $53.61 |
||
|
25
|
25
90387-2012E-00 Collar |
90387-2012E-00 |
from US $9.49 |
||
|
26
|
26
90387-2012C-00 Collar |
90387-2012C-00 |
from US $20.83 |
||
|
27
|
27
90387-2012D-00 Collar |
90387-2012D-00 |
from US $10.34 |
||
|
28
|
28
90201-205R6-00 Washer, Plate |
90201-205R6-00 |
from US $8.32 |
||
|
29
|
29
8CR-47550-10-00 Guide Wheel Assy |
8CR-47550-10-00 |
US $68.41 |
||
|
30
|
30
8DF-47550-01-00 Wheel Silver Plastic |
8DF-47550-01-00 |
from US $28.75 |
||
| replacement | |||||
|
30
|
30
8DF-47550-01-SL Whl Cls Rr Axle Guide Wheel Sv |
8DF-47550-01-SL |
US $42.91 |
||
|
31
|
31
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
32
|
32
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
33
|
33
8K2-47479-01-00 Collar 3USA |
8K2-47479-01-00 |
from US $23.66 |
||
|
34
|
34
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.70 |
||
