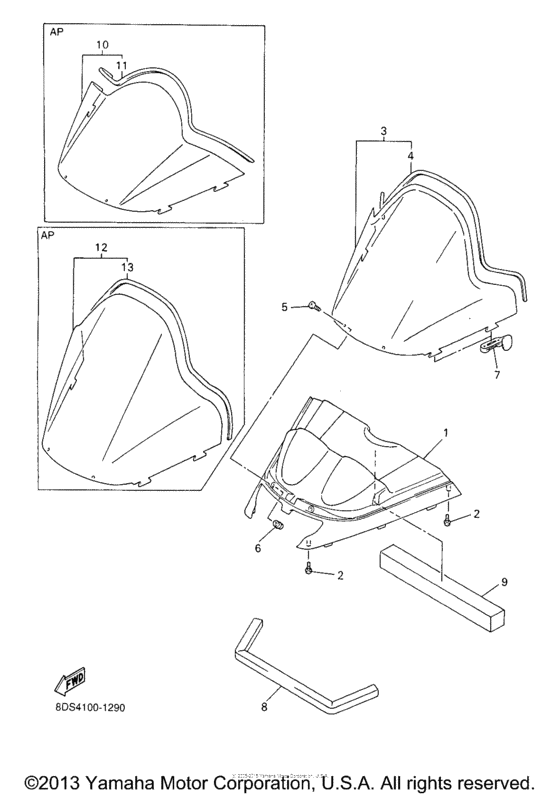

Windshield Diagram Yamaha VX700 Vmax 700
- Model code
- VX700F
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- USA
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DN-77251-20-00
Cover, Headlight
|
8DN-77251-20-00 |
— | ||
|
2
|
2
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
3
|
3
8DS-77210-00-00 Windshield Comp |
8DS-77210-00-00 |
US $328.66 |
||
| replacement | |||||
|
3
|
3
8DS-77210-00-BK Windshield :sm |
8DS-77210-00-BK |
US $117.92 |
||
|
4
|
4
8CR-77213-00-00
Trim, Upper
|
8CR-77213-00-00 |
— | ||
| replacement | |||||
|
4
|
4
87K-77213-00-00
Trim, Upper
|
87K-77213-00-00 |
— | ||
|
5
|
5
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.66 |
||
|
6
|
6
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.60 |
||
|
7
|
7
82H-77223-00-00 Fastner |
82H-77223-00-00 |
from US $1.94 |
||
|
8
|
8
8CR-77279-00-00
Damper, Noise 19
19 USA |
8CR-77279-00-00 |
— | ||
|
9
|
9
8CR-2199J-00-00 Shield, Noise 2USA |
8CR-2199J-00-00 |
from US $42.40 |
||
|
10
|
10
8DN-77210-20-00
Windshield Comp
AP USA |
8DN-77210-20-00 |
— | ||
| replacement | |||||
|
10
|
10
8DN-77210-00-BK
Windshield :sm
AP USA |
8DN-77210-00-BK |
— | ||
|
11
|
11
8CV-77213-00-00 Trim, UpperAP USA |
8CV-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
11
|
11
87K-77213-00-00
Trim, Upper
AP USA |
87K-77213-00-00 |
— | ||
|
12
|
12
8DY-77210-00-00
Windshield Comp
AP USA |
8DY-77210-00-00 |
— | ||
| replacement | |||||
|
12
|
12
8DY-77210-10-00
Windshield Comp
AP USA |
8DY-77210-10-00 |
— | ||
|
13
|
13
8DM-77213-00-00 Trim, UpperAP USA |
8DM-77213-00-00 |
from US $30.04 |
||
