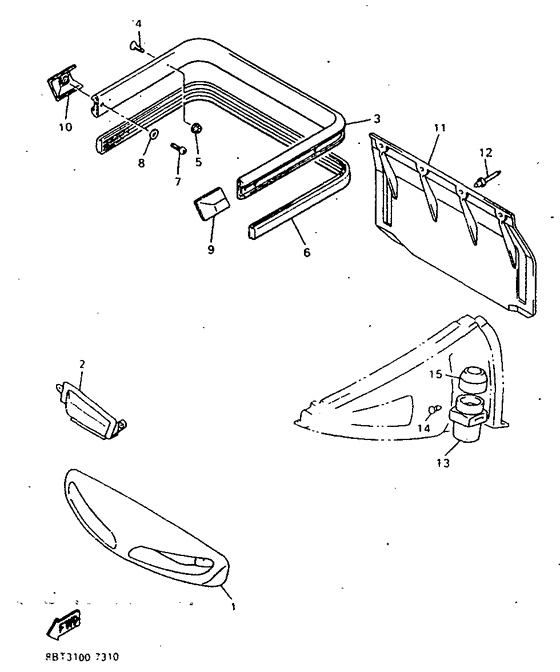

Bumper Diagram Yamaha VX800 Mountain Max 800
- Model code
- 8BT3
- Engine Capacity
- 800
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8BU-77511-00-00
Bumper, Front 1
Htr |
8BU-77511-00-00 |
— | ||
|
02
|
02
8AX-77128-00-00 Stay 4 |
8AX-77128-00-00 |
US $143.62 |
||
|
03
|
03
8BX-77541-00-00 Bumper, Rear 1 |
8BX-77541-00-00 |
US $224.75 |
||
|
04
|
04
90151-08054-00
Screw,flat
|
90151-08054-00 |
— | ||
| replacement | |||||
|
04
|
04
987-07080-25-00
Flat Head Screw
|
987-07080-25-00 |
— | ||
|
05
|
05
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
06
|
06
89L-77516-00-00 Bush, Rubber 2 |
89L-77516-00-00 |
US $34.69 |
||
|
07
|
07
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
8N8-77523-00-00
End, Bumper
|
8N8-77523-00-00 |
— | ||
|
10
|
10
8N8-77524-00-00 End, Bumper |
8N8-77524-00-00 |
US $48.71 |
||
|
11
|
11
8CR-77595-00-00 Flap |
8CR-77595-00-00 |
US $60.71 |
||
| replacements | |||||
|
11
|
11
8GW-77595-00-00 Flap |
8GW-77595-00-00 |
from US $57.51 |
||
|
11
|
11
8CR-77595-01-00
Flap
|
8CR-77595-01-00 |
— | ||
|
12
|
12
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.52 |
||
|
13
|
13
82M-77551-00-00 Protector 1 |
82M-77551-00-00 |
US $51.01 |
||
|
14
|
14
90269-04025-00 Rivet |
90269-04025-00 |
from US $1.70 |
||
|
15
|
15
8AX-77554-00-00
Protector 4
|
8AX-77554-00-00 |
— | ||
