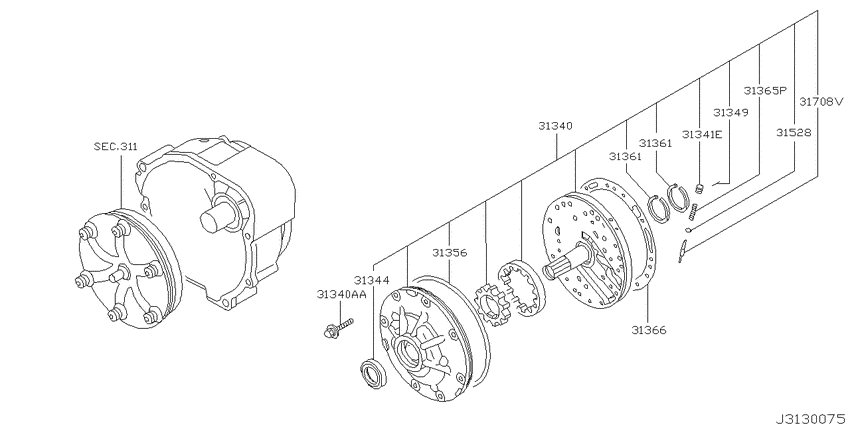

Oil pump (2003-10-01 ~ ; 3AT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 3AT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
31340
|
31340
31340-6A0A0 Pump Assy-Oil0310--01 ~ ; 3AT |
31340-6A0A0 |
US $429.05 |
||
|
31340
|
31340
01125-6A0A8 Bolt0310--01 ~ ; 3AT; ﾌﾗﾝｼﾞ |
01125-6A0A8 |
US $3.89 |
||
|
31340AA
|
31340AA
01125-6A0A8 Bolt0310--01 ~ ; 3AT; ﾌﾗﾝｼﾞ |
01125-6A0A8 |
US $3.89 |
||
|
31341E
|
31341E
31345-6A0A0 Plug0310--01 ~ ; 3AT |
31345-6A0A0 |
US $14.11 |
||
|
31344
|
31344
31344-6A0A0 Seal-Oil Pump Housing0310--01 ~ ; 3AT |
31344-6A0A0 |
US $10.80 |
||
|
31349
|
31349
31349-6A0A0 Pin-Knock0310--01 ~ ; 3AT |
31349-6A0A0 |
US $1.87 |
||
|
31356
|
31356
31356-6A0A0 Seal-O Ring0310--01 ~ ; 3AT |
31356-6A0A0 |
US $21.02 |
||
|
31361
|
31361
31361-6A0A0 Ring-Seal0310--01 ~ ; 3AT |
31361-6A0A0 |
US $8.21 |
||
|
31361
|
31361
31361-6A0A0 Ring-Seal0310--01 ~ ; 3AT |
31361-6A0A0 |
US $8.21 |
||
|
31365P
|
31365P
31356-6A0A1 Spring-Camring0310--01 ~ ; 3AT |
31356-6A0A1 |
US $4.61 |
||
|
31366
|
31366
31366-6A0A0 Gasket-Oil Pump0310--01 ~ ; 3AT |
31366-6A0A0 |
US $9.94 |
||
|
31528
|
31528
31528-6A0A0 Washer-Thrust0310--01 ~ ; 3AT |
31528-6A0A0 |
US $5.62 |
||
|
31708V
|
31708V
31708-6A0A0 Tube-Connector, Oil Pump0310--01 ~ ; 3AT |
31708-6A0A0 |
US $45.07 |
||
