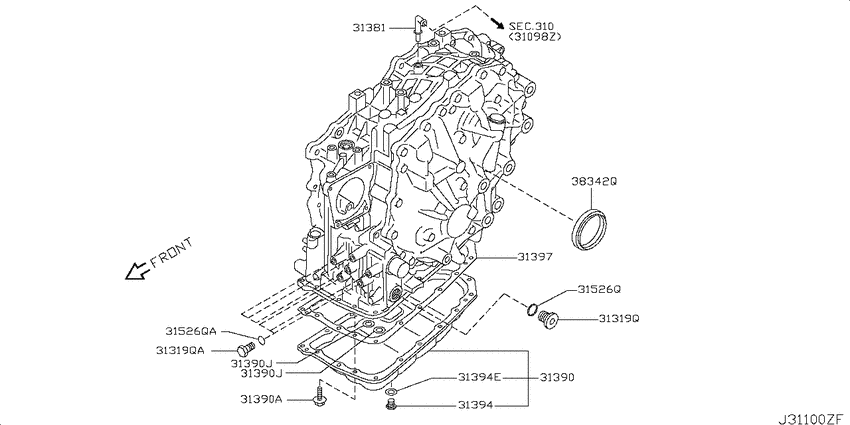

Torque converter,housing & case (2007-08-01 ~ ; トランスミッションケース; CVT) Diagram Nissan X-TRAIL
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- CVT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
31319Q
|
31319Q
31305-1XA01 Plug-Thread0708--01 ~ ; CVT |
31305-1XA01 |
from US $2.39 |
||
|
31319Q
|
31319Q
31305-1XA00 Plug-Thread0708--01 ~ ; CVT |
31305-1XA00 |
from US $2.45 |
||
|
31319Q
|
31319Q
31305-1XA00 Plug-Thread0708--01 ~ ; CVT |
31305-1XA00 |
from US $2.45 |
||
|
31319QA
|
31319QA
31305-1XA00 Plug-Thread0708--01 ~ ; CVT |
31305-1XA00 |
from US $2.45 |
||
|
31381
|
31381
38352-1XF00 Breather-Air0708--01 ~ ; CVT |
38352-1XF00 |
US $17.61 |
||
|
31390
|
31390
313901XF01 Pan Assy-Oil0708--01 ~ ; 4WD.CVT |
313901XF01 |
US $61.20 |
||
|
31390
|
31390
31377-1XA00 Bolt0708--01 ~ ; CVT |
31377-1XA00 |
from US $0.52 |
||
|
31390
|
31390
313793AX0A Magnet0708--01 ~ ; CVT |
313793AX0A |
from US $2.94 |
||
|
31390A
|
31390A
31377-1XA00 Bolt0708--01 ~ ; CVT |
31377-1XA00 |
from US $0.52 |
||
|
31390J
|
31390J
313793AX0A Magnet0708--01 ~ ; CVT |
313793AX0A |
from US $2.94 |
||
|
31390J
|
31390J
313793AX0A Magnet0708--01 ~ ; CVT |
313793AX0A |
from US $2.94 |
||
|
31394
|
31394
3137731X06 Plug-Drain0708--01 ~ ; CVT |
3137731X06 |
from US $4.51 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug0708--01 ~ ; 4WD.CVT |
1102601M02 |
from US $0.91 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug0708--01 ~ ; 4WD.CVT |
1102601M02 |
from US $0.91 |
||
|
31397
|
31397
313971XF0C Gasket-Oil Pan0708--01 ~ ; CVT |
313971XF0C |
from US $23.16 |
||
|
31526Q
|
31526Q
315261XA01 Seal-O Ring0708--01 ~ ; CVT |
315261XA01 |
from US $3.79 |
||
|
31526Q
|
31526Q
31526-1XA00 Seal-O Ring0708--01 ~ ; 4WD.CVT |
31526-1XA00 |
from US $2.45 |
||
|
31526Q
|
31526Q
31526-1XA00 Seal-O Ring0708--01 ~ ; CVT |
31526-1XA00 |
from US $2.45 |
||
|
31526QA
|
31526QA
31526-1XA00 Seal-O Ring0708--01 ~ ; 4WD.CVT |
31526-1XA00 |
from US $2.45 |
||
|
38342Q
|
38342Q
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING0708--01 ~ ; CVT |
383428E000 |
from US $4.23 |
||
